ROKK CHARGE PRO USB CHARGER
86,77 €
The Charge Pro fast charger is suitable for efficient charging in 12 V or 24 V systems. The maximum power in a 12 V system is 36 W, and in a 24 V system up to 60 W. The USB-C connection can be used to charge, for example, a laptop, and in terms of power, the device can simultaneously charge, for example, an iPad and an iPhone.

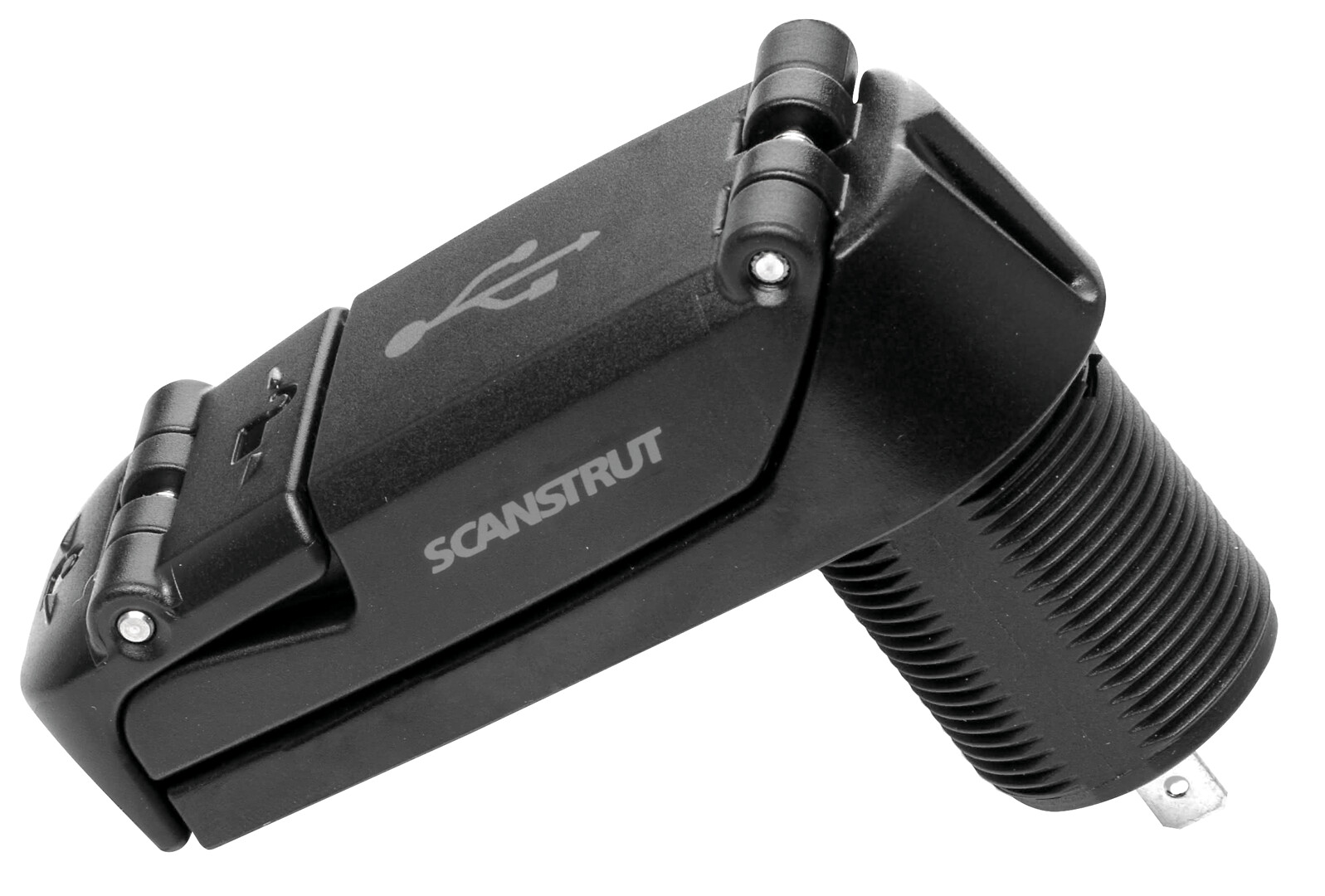

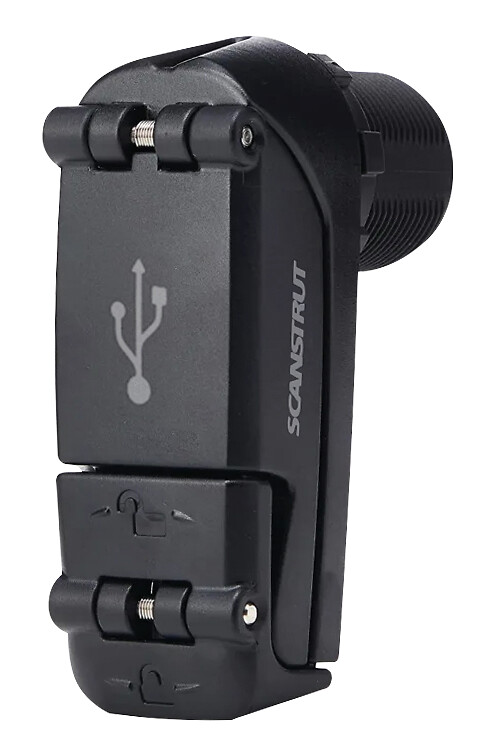

The structure is compact, and thanks to the click-and-lock mechanism, the USB connector remains waterproof even during use. The IPX6 protection class is resistant to splash water. The charger is designed specifically for boat conditions and is made of materials that meet the requirements of the marine environment: the circuit board is corrosion-protected, the outer surfaces are UV-protected, and the hinges and springs are made of 316-grade stainless steel.
SPECIFICATIONS:
USB-C output:
Maximum 60 W (in 24V system)
Maximum 36 W (in 12V system)
Supported voltages:
12V system: 5V⎓3A, 9V⎓3A, 12V⎓3A
24V system: additionally 15V⎓3A, 20V⎓3A
USB-A output:
Maximum 36 W
Supported voltages: 5V⎓1.5A, 9V⎓1.5A, 12V⎓1.5A/3A
Input voltage: 10–32V DC
Maximum current: 6 A
Standby power consumption: 0.01 W

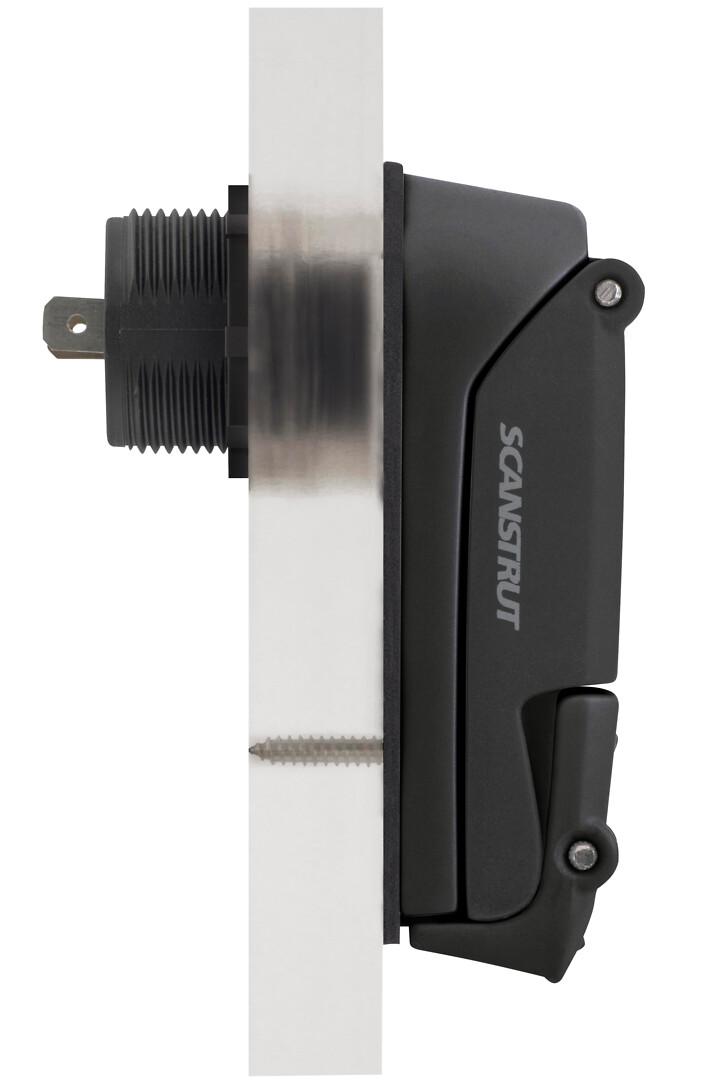

Mounting hole: Ø 29 mm (1 1/8”)
Compatibility and installation:
• Suitable for all USB-A and USB-C ports
• Charges one or two devices (total power up to 60 W)
• Can be installed directly into an existing USB slot if the dimensions are compatible
Protection and operating conditions:
• IPX6 waterproof with the lid closed
• Circuit board protected from corrosion
• UV-resistant surfaces
• 316 grade stainless hinges and springs
Additional information:
It is recommended to use the manufacturer’s own or certified charging cable with the device for optimal charging performance. Phones will charge at the same speed regardless of whether a 12V or 24V system is used. The 60 watt charging power, which is suitable for laptops, for example, requires a 24 volt system.
| Dimensijas | 94 × 39 × 29 mm |
|---|---|
| Technical name | SC-USB-03 USB-A / USB-C |
