TRIM CONTROLLER 600E TUNNEL R600
3 510,45 €
IT600-E TUNNEL R600 trim control for 50-100 foot planing or semi-planing boats.

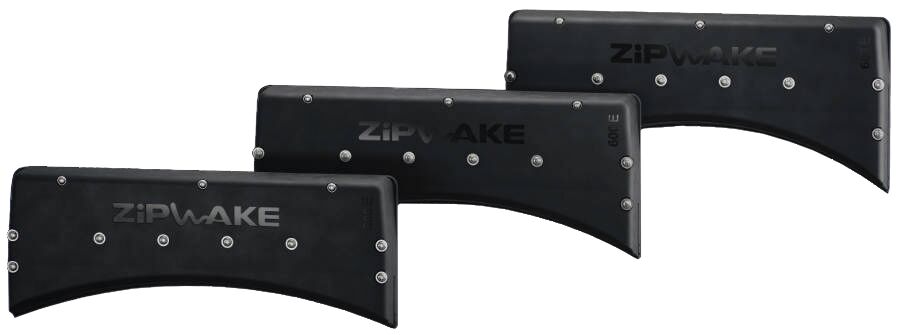

The tunnel-shaped trim control provides excellent lift for hulls with propeller tunnels. Unlike straight trim controls, the curvature of the tunnel-shaped trim control allows it to be installed above the propeller tunnel to utilize otherwise unused or partially unused lift.
Model: IT600-E TUNNEL R600
Length: 600 mm
Weight: 8.2 kg
Boat max. speed: 50 knots
Blade stroke: 60 mm
Blade speed: 40 mm/s
Thru-hull connection: Hidden or above waterline
Servo actuator: SU-E
Cable length: 3 m (extendable to max. 6 m)
Cable material: PUR
Connector: M12 5-pin round
Connector diameter: 14.5 mm
Operating voltage: 12 – 32 VDC
Power consumption: 25 W max.
Operating temperature: 0° … +40°C
Storage temperature: -40° … +90°C
Protection class: IP68 5 m
Compliance: CE, FCC
| Technical name | IT600-E TUNNEL R600 2012022 |
|---|
