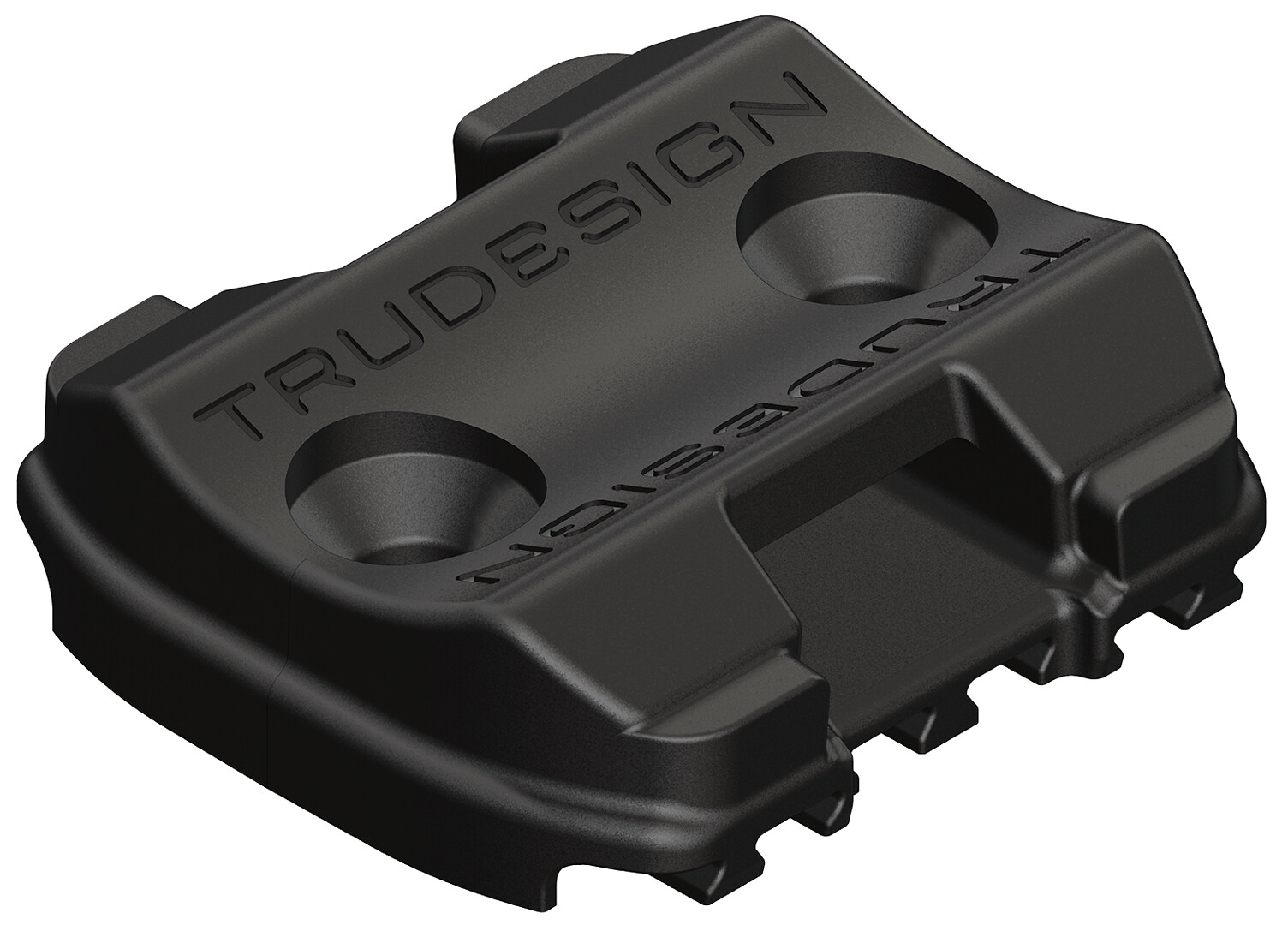

TRUDESIGN HOLDER BASE

• Two alternative mounting methods for the base – adhesive sticker or screws (or both) – No need for additional fasteners. Saddle Clip can be replaced with a different size clip without removing the base (for example, when replacing the piping).
• Dovetail grooves on the bottom of the base – better adhesion to various surfaces, no need for fasteners.
• Base made of UV-protected composite material (glass fiber reinforced Nylon 6 (PA6)).

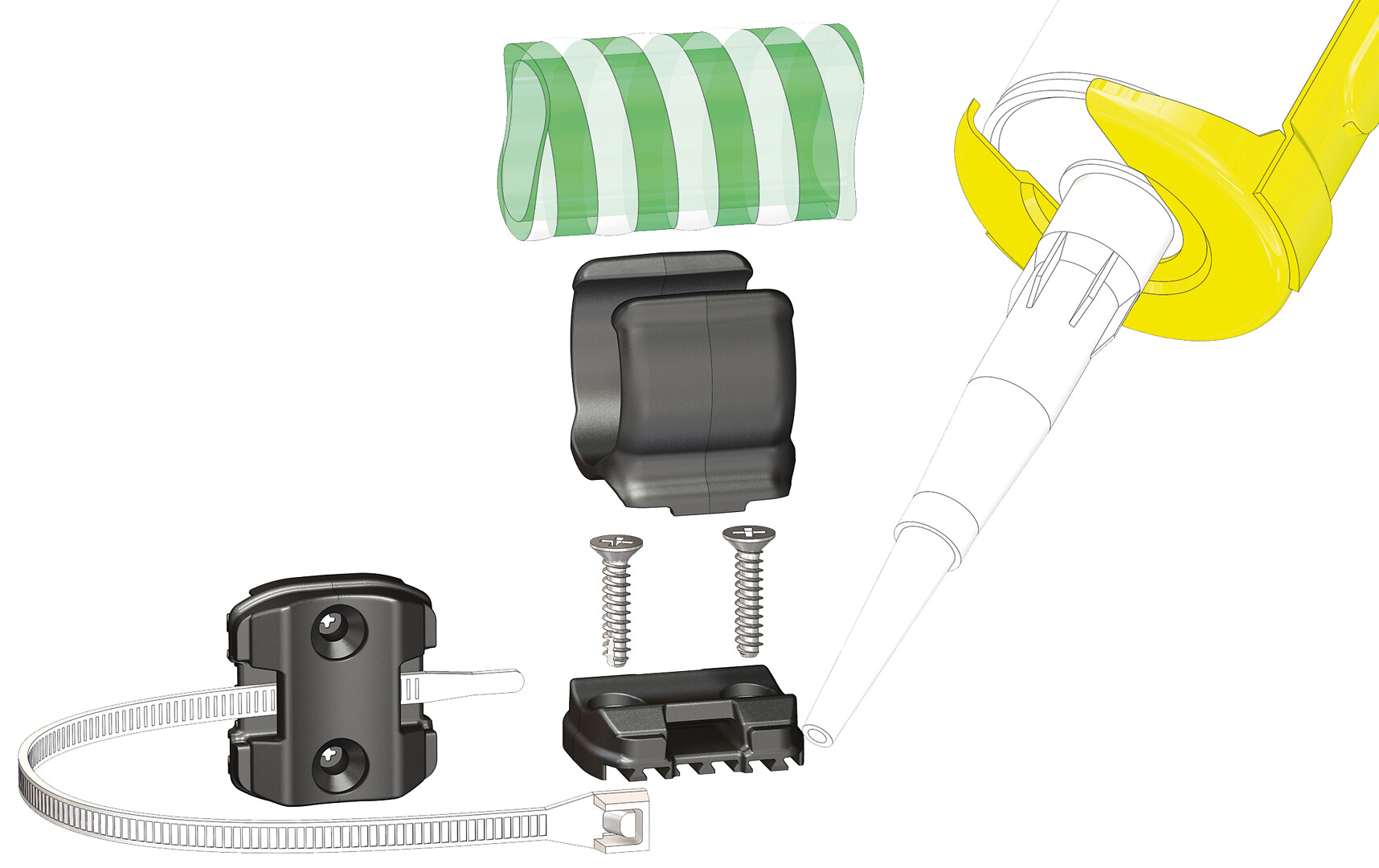

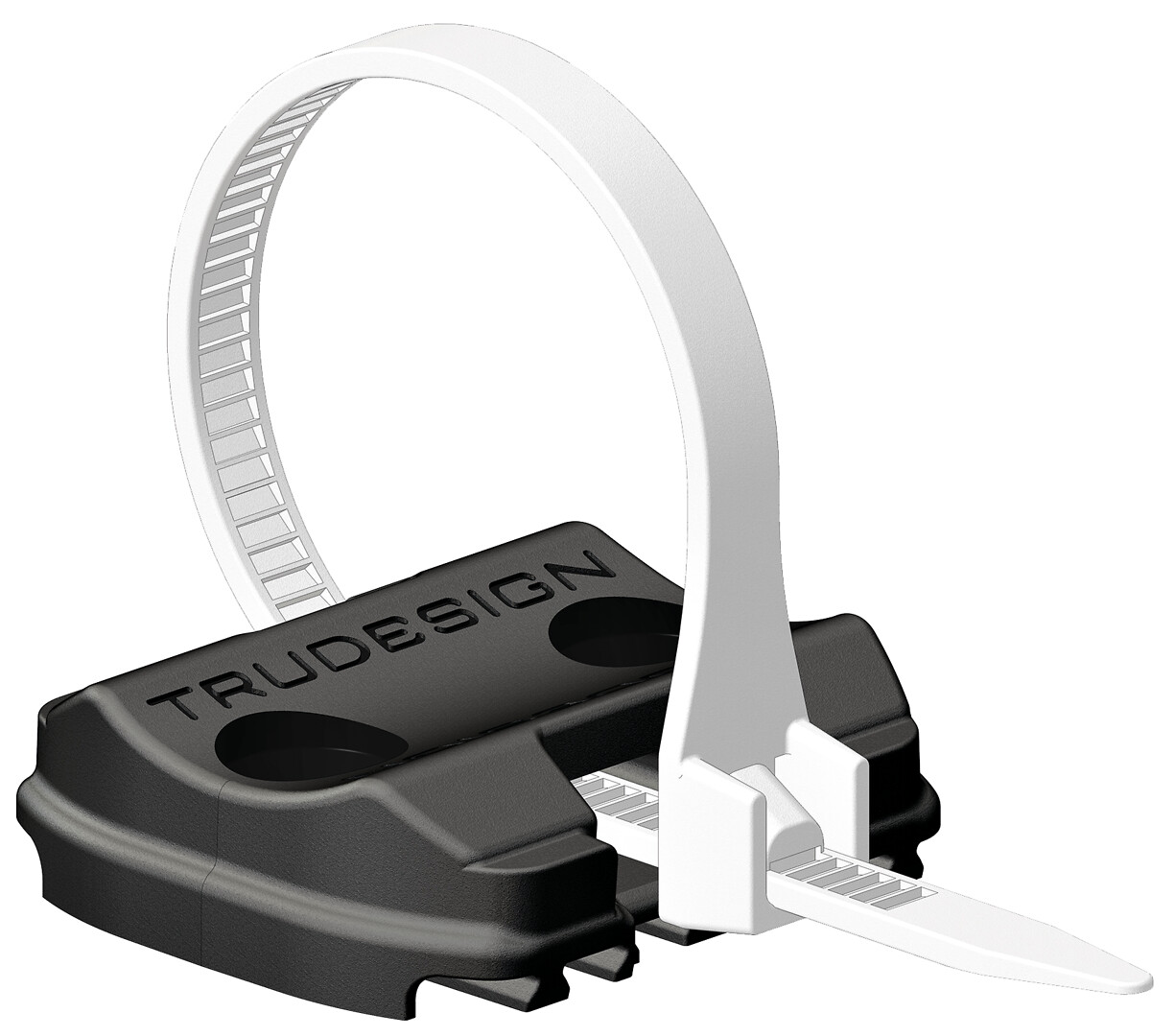

TruDesign Saddle Clips & bases are designed to enable neat and stylish routing of cables, wires, pipes and hoses. The base can be screwed or glued to a wall or bulkhead. The base can be used independently with a cable tie or it can be equipped with Saddle Clips, which are available in four different sizes (for pipes and hoses).

If it is necessary to ensure adhesion, it can be done by threading cable tie under the base and further around the Saddle Clips and the hose/pipe, allowing all components to be locked together. If you later need to change the pipe runs, this can be done simply by removing the hose/pipe from the Saddle Clip and pressing the arms of the clip against each other, which will release it from the base. It is then possible to install a clip of a different size on the base if you want to change the hose/pipe diameter. The base is available in one size option, to which it is possible to attach four different sized Saddle Clips.
