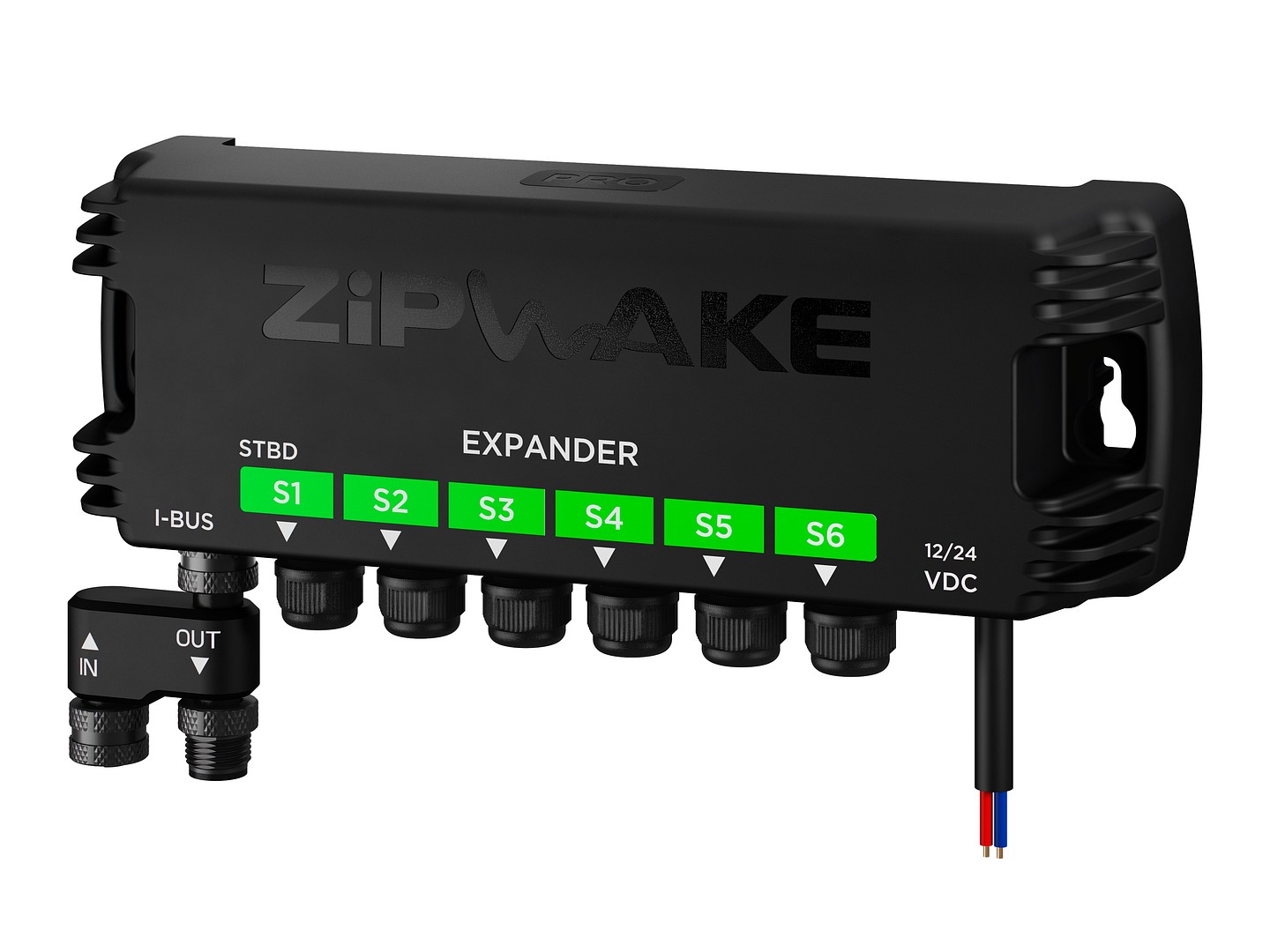

ZIPWAKE DISTRIBUTION UNIT DU-EX PRO
701,90 €
Distribution unit that connects to the main control panel or integration module. The unit is robust, waterproof, oil-resistant and protected against ignition, making it suitable for installation in the engine compartment. The supplied power cable makes it easy to connect the battery.
The distribution unit has integrated electrical protection, such as automatic fuses. The system can be expanded with the DU-EX PRO expansion unit, which allows up to six Series E Pro dual-motor trim controls or a combination of them and single-motor Pro trim controls.
Model: DU-EX PRO
Operating voltage: 12–32 V DC
Power consumption: 10 W maximum
Protection fuse: integrated and automatic
Power cable length: 4 m (13 ft), diameter 9 mm (0.35 in), 12 AWG
Operating temperature: -20° – +85°C (-4° – +185°F)
Storage temperature: -40° – +90°C (-40° – +194°F)
Waterproof rating: IP67 with cables and/or protective plugs installed
Oil resistance: common engine fluids
Approvals: CE, FCC, SAE J1171 Ignition protected
Weight: 1.1 kg (2.4 lbs) including power cable
| Dimensijas | 222 × 80 mm |
|---|---|
| Technical name | 2022034 |
