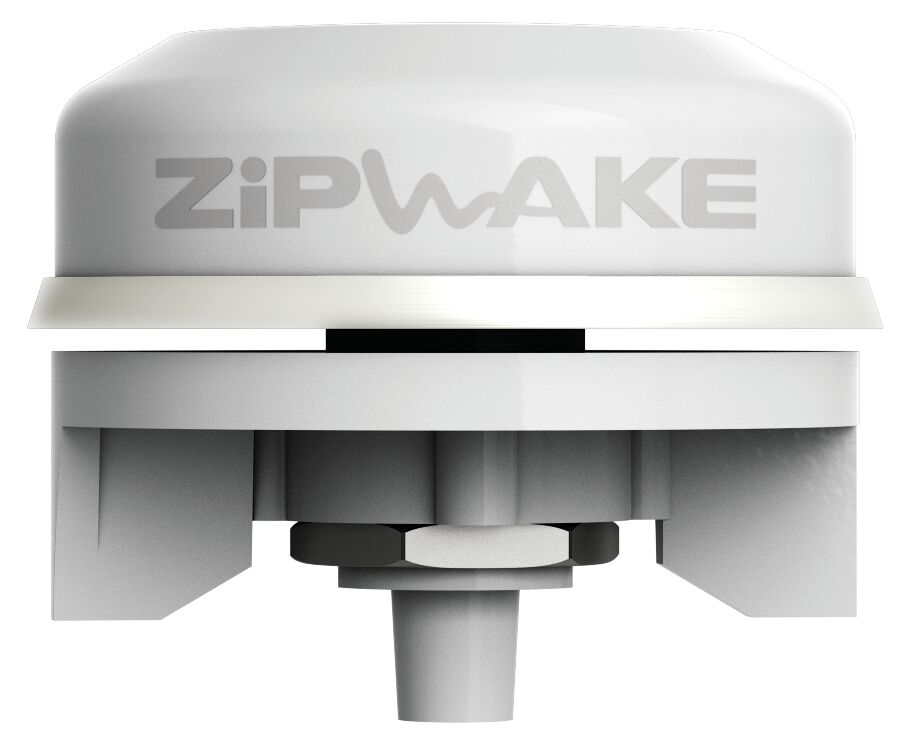

ZIPWAKE GPS ANTENNA

The external GPS is an optional accessory and is intended for use when no other strong signal is available for the Zipwake system. For example, when the vessel has only one helm station with a shelter (roof) and no other GPS sources are available. In this case, an external GPS antenna is an excellent solution. Its five-meter cable can be extended to 15 meters with Zipwake extension cables. It is easy to connect to the connector marked EXT GPS on the rear of the control panel. The external GPS can be connected to any control panel installed in the system.

Model: GPS
Connectors: M12 5-pin circular
Cable material: White PVC
Cable length: 5 m (16 ft) extendable up to 15 m (49 ft)
Input voltage: 5 VDC ±5%
Power consumption: 0.28 W, 55 mA (average)
Protocol: NMEA 0183 / RS232
NMEA phrases: RMC, VTG, GGA, GSA, GSV, GLL
Baud rate: 38400
Update rate: 5 Hz
Number of channels: 20
Average time to first fix: Hot start 6 s, warm start 38 s, cold start 42 s
Operating temperature: -30 ° … +85 °C (-22 ° … +185 °F)
Storage temperature: -40 ° … +95 °C (-40 ° … +203 °F)
Waterproof rating: IP67
Compatibility: CE, FCC
Weight: 0.065 kg (0.14 lbs) without cable and connector

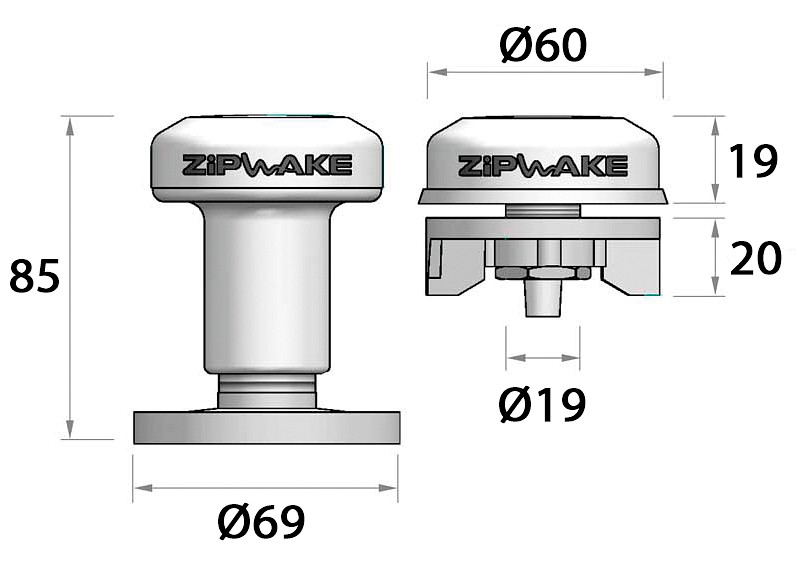

Installation: Surface or flush mount
