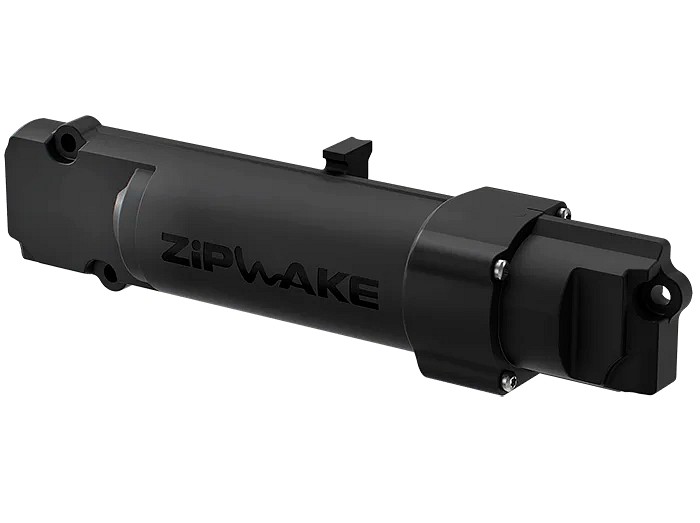

ZIPWAKE SERVO UNIT + 3m CABLE
488,82 €
The S-Series flush-mounted, electric booster unit fits inside the trim tab, where it uses a precise linear motion mechanism to provide the trim tab with precise control. The unit is fast-acting, durable, requires no calibration, and is easy to install and replace. The unit is supplied with a durable three-meter cable and self-sealing frame gland.
TECHNICAL DATA:
Model: SU-S
Servo motor type: Brushless DC motor with Hall sensors
Operating voltage: 12 – 32 VDC
Power consumption: 25 W max.
Operating temperature range: 0° … +40°C (+32° … +104°F)
Protection class: IP68 5 m (16 ft)
Compliance: CE, FCC
Cable length: 3 m (extendable up to 6 m)
Cable material: PUR
Connector: M12 5-pin round

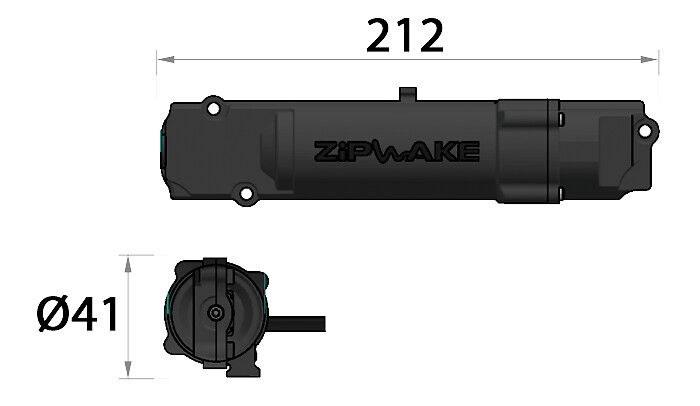

Connector diameter: 14.5 mm (0.57′)
Weight: 0.75 kg (including cable)
| Svars | 0,75 kg |
|---|---|
| Technical name | 2011230 SU-S |
