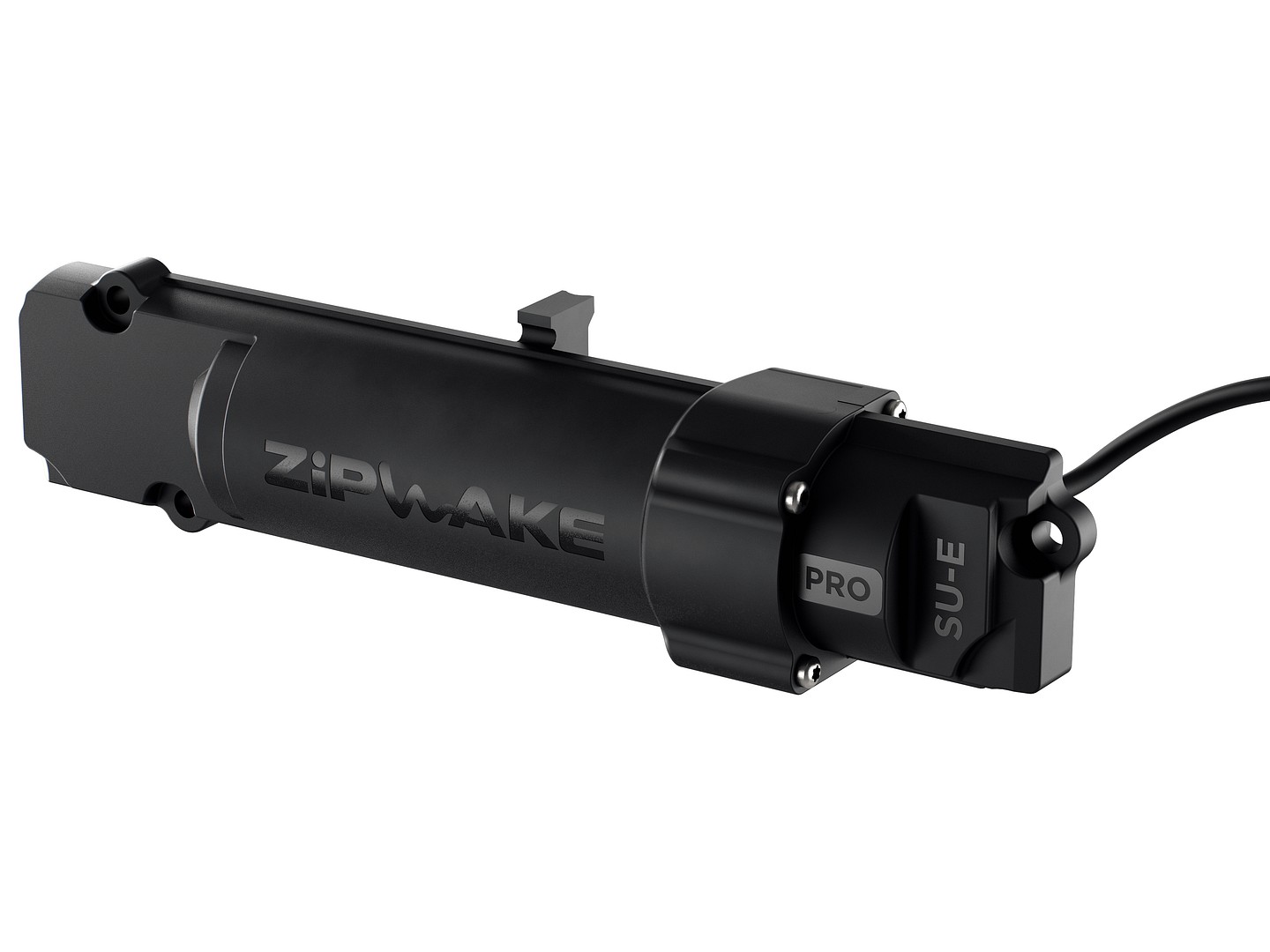

ZIPWAKE SERVO UNIT SU-E PRO
595,84 €
The PRO servo unit is equipped with double seals and a precision ground special steel shaft. The unit is very fast, durable, calibration-free and easy to install or replace.
The waterproof PRO electric servo unit is placed inside the trim control, where it precisely controls the mechanism that moves the control blades linearly. To ensure a long service life, the unit has double seals and a precision ground shaft made of special grade acid-resistant steel. The operation is very fast and reliable without the need for calibration. Installation and replacement are effortless.
A durable 3 meter cable with a self-sealing grommet is supplied.
PRO models: IT600-E, IT800-E, IT1000-E, IT600-E Chine and IT600-E Tunnel
Servo motor type: Brushless DC, with Hall sensors
Operating voltage: 36 V DC
Power consumption: max. 35 W
Operating temperature: 0° – +40°C (+32° – +104°F)
Storage temperature: -40° – +90°C (-40° – +194°F)
Waterproof rating: IP68, 5 m (16 ft)
Approvals: CE, FCC
Cable length: 3 m (10 ft), extendable to 6 m (20 ft)
Cable material: PUR
Connector: M12, 5-pin circular
Connector diameter: 14.5 mm (0.57 in)
Weight: 0.7 kg (1.54 lbs) including cable
| Dimensijas | 230 × 68 mm |
|---|---|
| Technical name | 2022035 |
