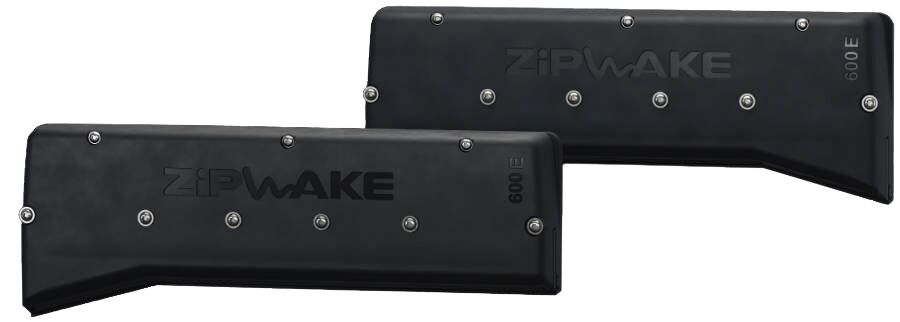

ZIPWAKE TRIM ADJUSTMENT 600E CHINE RIGHT
2 890,50 €
IT600-E CHINE STBD (right) trim control for 50-100 foot planing or semi-planing boats.
Chine trim controls are mounted on the transom at the very extreme edge of the hull. The design of the control is designed to utilize the entire width of the hull as efficiently as possible. The Chine control corresponds to a straight trim control with a higher lifting capacity, which makes it a really good option also for non-multi-engine installations.
Model: IT600-E CHINE STBD
Length: 600 mm
Weight: 7.4 kg
Boat max. speed: 50 knots
Blade stroke: 60 mm
Blade speed: 40 mm/s
Thru-hull connection: Hidden or above waterline
Servo actuator: SU-E
Cable length: 3 m (extendable to max. 6 m)
Cable material: PUR
Connector: M12 5-pin round
Connector diameter: 14.5 mm
Operating voltage: 12 – 32 VDC
Power consumption: 25 W max.
Operating temperature: 0° … +40°C
Storage temperature: -40° … +90°C
Protection class: IP68 5 m
Compliance: CE, FCC
| Technical name | IT600-E CHINESE STBD 2012025 |
|---|
