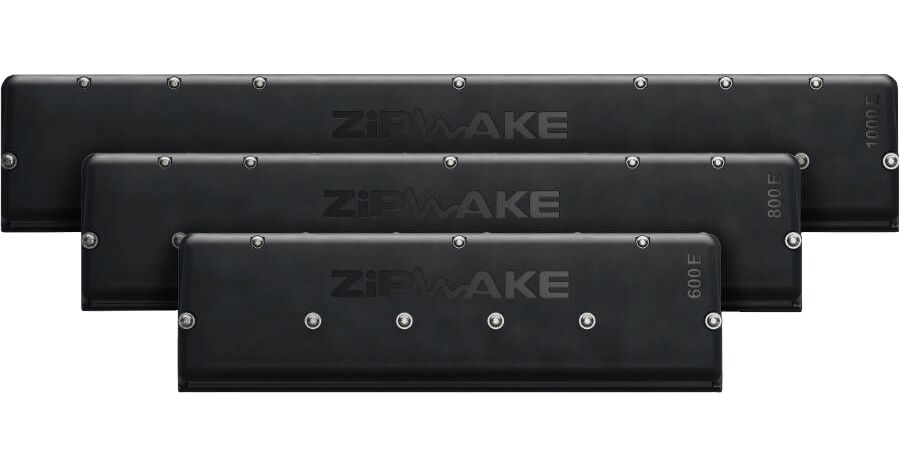

ZIPWAKE TRIM CONTROLLER 1000E + 3M CABLE

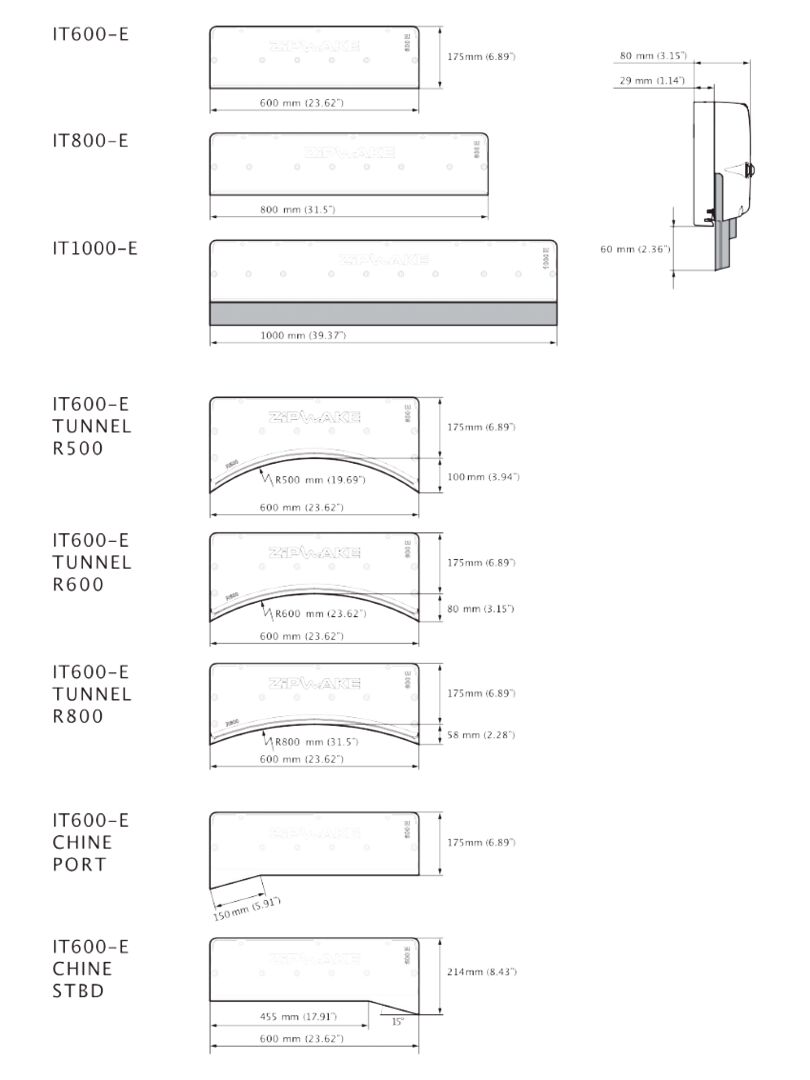

The E-Series is a family of large, fast-acting trim tabs, including three straight, three tunnel and two Chine models, with a tab speed and stroke of 40 mm/s and 60 mm. The high modular design for mass production means that the trim control is durable, affordable and particularly suitable for 50-100 ft long sliding or semi-sliding hulls.

Model: IT1000-E
Length: 1000 mm
Weight: 11.5 kg
Max. boat speed: 50 knots
Blade stroke: 60 mm
Blade speed: 40 mm/s
Thru-hull connection: Concealed or above waterline
Servo actuator: SU-E
Cable length: 3 m (extendable to max. 6 m)
Cable material: PUR
Connector: M12 5-pin round
Connector diameter: 14.5 mm
Operating voltage: 12 – 32 VDC
Power consumption: 25 W max.
Operating temperature: 0° … +40°C
Storage temperature: -40° … +90°C
Protection class: IP68 5 m
Compliance: CE, FCC
