ZIPWAKE TRIM KIT 600E INTEGRATION
6 798,18 €
The Zipwake Series E takes automatic trim control to a whole new level with faster response time, more efficient lifting force, a larger and brighter display, and improved performance and ride comfort. The system combines durable, responsive trim controls with 3D control, designed for larger boats up to 30 meters (100 feet). The E Series allows precise control of trim angle, heel and directional stability in all conditions.
The operation is fast and precise. The blade movement is 40 mm/s and the travel distance is 60 mm, which means effective and dynamic lift control. The Series E is compatible with the Series S trim controls, allowing flexible solutions for installation sites of different sizes.
With the integration module, the system is fully controllable via compatible multifunction displays. Neat installation and a clear dashboard view are easy to achieve. The system can be monitored on a variety of chartplotters via NMEA 2000® connectivity. The integration module is compatible with all Zipwake components.
Auto Pitch Control adjusts the pitch trim in real time to suit the driving situation. The end result is faster acceleration, a wider range of planing speeds and better visibility while driving.
Active Roll Control automatically stabilizes the boat against lateral tilt in changing conditions, such as wind, load changes or waves. Turns remain controlled at all speeds, making travel smooth and safe.
Zipwake’s waterproof and clear control panel is designed for use in all lighting conditions. The sunlight-readable colour display and ‘Auto’ button enable fully automatic trimming with a single push of a button.

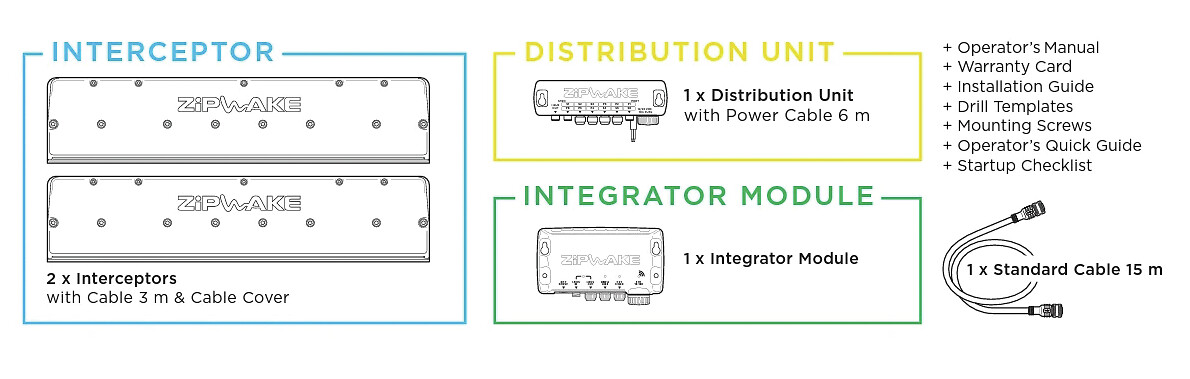

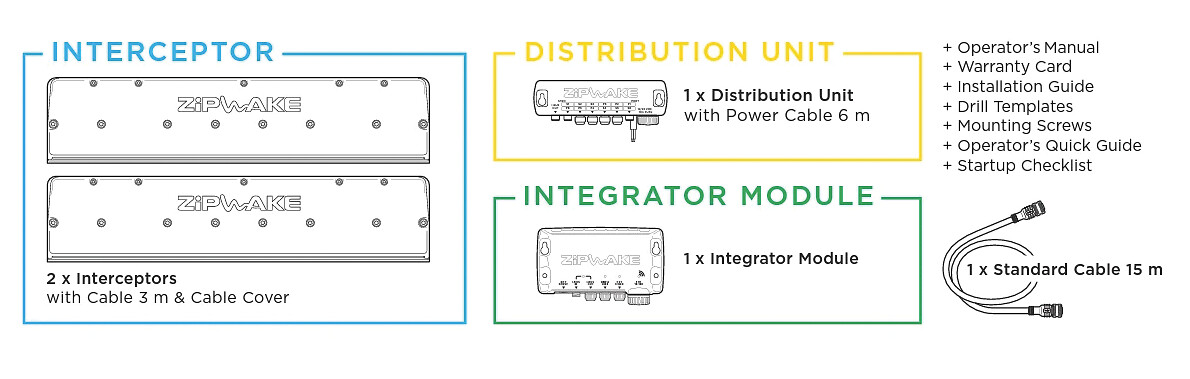

Integration kit includes:
2 x Trim plates, including 3m cables and cable covers
1 x Distribution unit, including 6m power cable
1 x 15m standard cable
1 x Integration module
Model: IT600-E
Length: 600mm (23.6in)
Weight: 7.3kg (16.1lbs)
Maximum speed: 60 knots
Blade travel: 60mm (2.4 inch)
Blade speed: 40 mm/s (1.6 in/s)
Cable length: 3 m (10 ft), extendable to 6 m (20 ft)
Operating voltage: 12–32 V DC
Power consumption: 25 W maximum
Operating temperature: 0° – +40°C (+32° – +104°F)
Storage temperature: -40° – +90°C (-40° – +194°F)
Water resistance: IP68 (5 m depth)
| Svars | 21,7 kg |
|---|---|
| Dimensijas | 600 × 175 mm |
| Technical name | KBI600E – 2012271 |
