ZIPWAKE TRIM KIT CHINE 300MM

Auto Pitch Control adjusts the pitch trim in real time to suit the driving situation. The end result is faster acceleration, a wider range of planing speeds and better visibility while driving.
Active Roll Control automatically stabilizes the boat against lateral tilt in changing conditions, such as wind, load changes or waves. Turns remain controlled at all speeds, making travel smooth and safe.
Zipwake’s waterproof and clear control panel is designed for use in all lighting conditions. The sunlight-readable color display and ‘Auto’ button enable fully automatic trimming with a single push of a button.

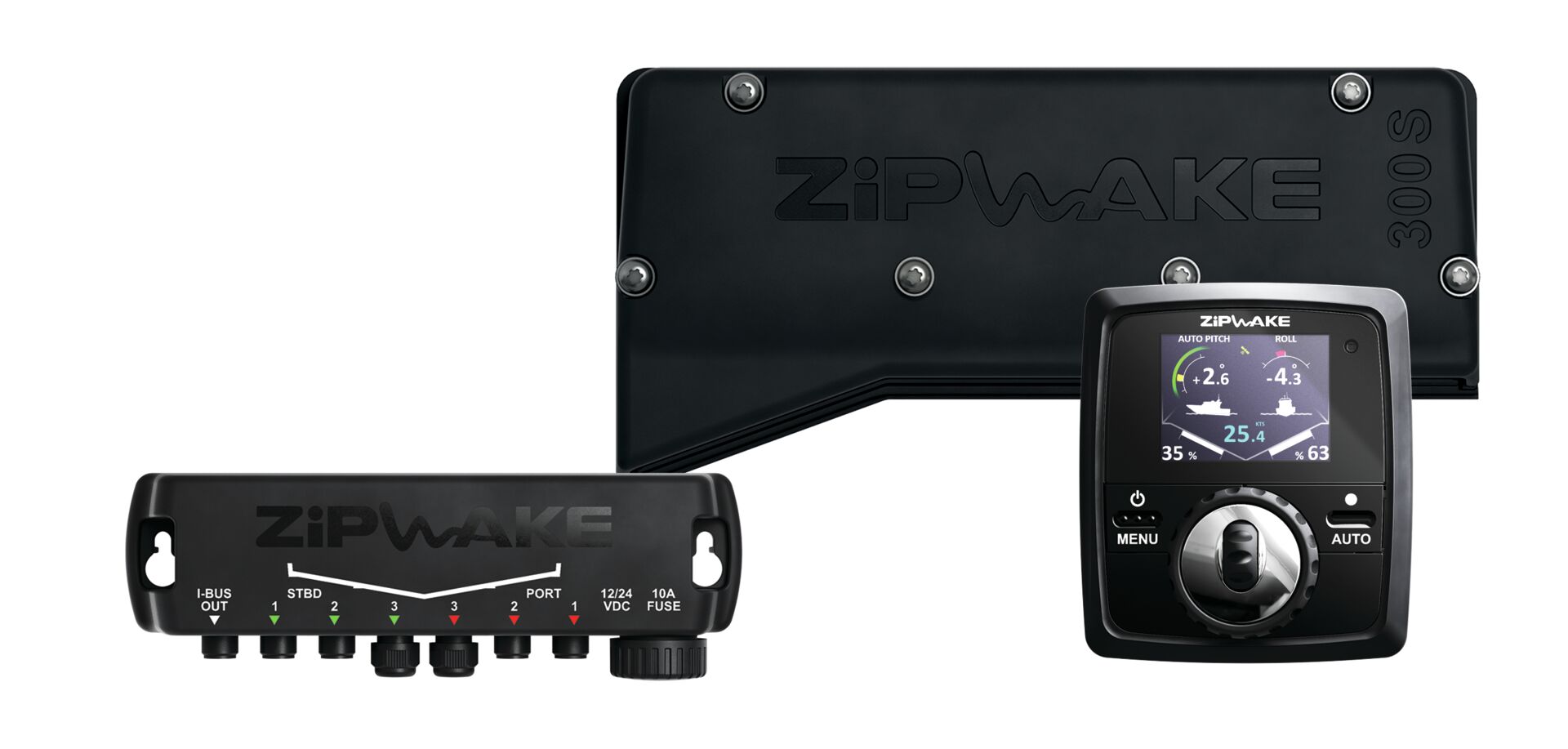

The set includes:

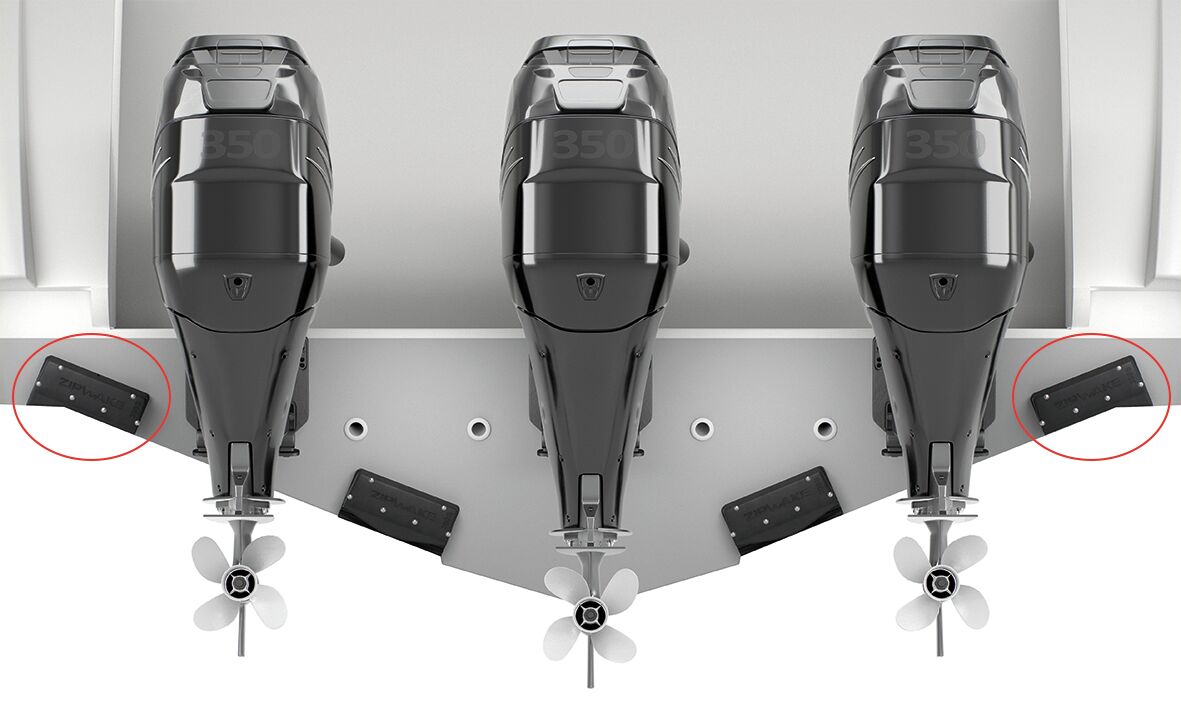

2 x Trim plates (Chine right and Chine left), including 3 meter cables and cable protectors.
1 x Distribution unit, including 4 meter power cable.
1 x Control panel, including 7 meter standard cable.

Model: IT300-S CHINE PORT / IT300-S CHINE PRO STBD
Length: 300 mm (12 inches) / 300 mm (12 inches)
Weight: 2.2 kg (4.9 lbs) / 2.2 kg (4.9 lbs)
Maximum speed: 60 knots
Blade travel: 30 mm (1.2 in)
Blade speed: 20 mm/s (0.8 in/s)
Cable length: 3 m (10 ft), extendable to 6 m (20 ft)
Operating voltage: 12 – 32 V DC
Power consumption: 25 W maximum
Operating temperature: 0° – +40°C (+32° – +104°F)
Storage temperature: -40° – +90°C (-40° – +194°F)
Water resistance: IP68 (at 5 m depth)
Compatibility: CE, FCC
