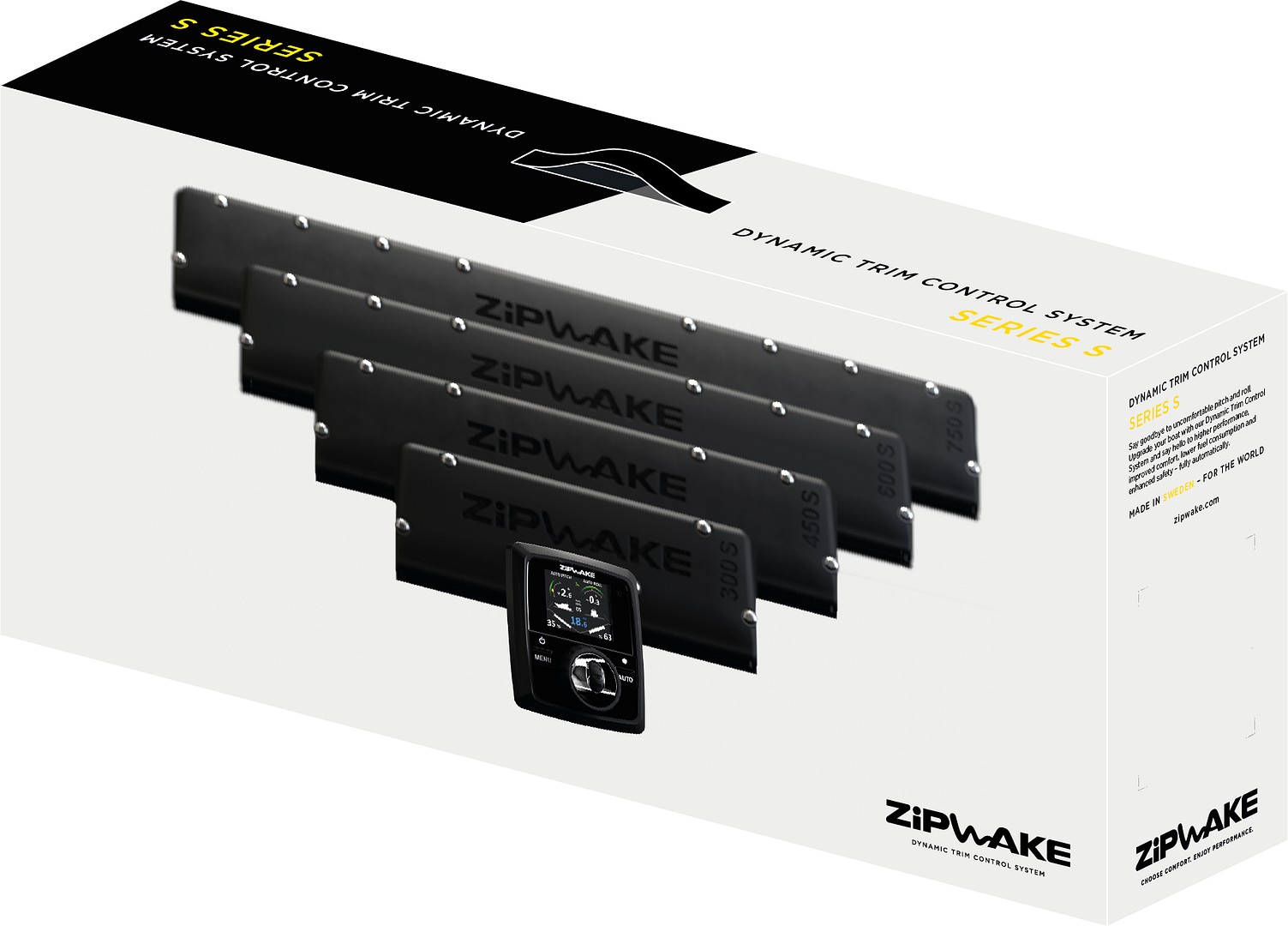

ZIPWAKE TRIM KIT S CHINE INTEGRATION 300MM
2 915,57 €
Zipwake Series S improves ride comfort, fuel economy and safety. The system consists of fast and durable trim controls and an intuitive 3D control panel that allows you to precisely control trim angle, pitch and direction. Operation is fully automatic. Designed for planing and semi-planing boats up to 50 feet in length and with a top speed of up to 60 knots.
Chine trim controls utilize the outer surfaces of the hull to generate effective lift. Their effect is equivalent to the action of a straight trim control mounted one size larger inboard. Chine trim controls are especially suitable for applications where transom space is limited – for example, next to outboard motors or drives. Chine trim controls are mounted on the transom at the very edge of the hull.
The integration module allows the system to be fully controlled via compatible multifunction displays. A neat installation and a clear dashboard view are easy to achieve. The system can be monitored on a variety of chartplotters via the NMEA 2000® interface. The integration module is compatible with all Zipwake components.
Auto Pitch Control adjusts the pitch trim in real time to suit the driving situation. The end result is faster acceleration, a wider range of planing speeds and better visibility while driving.
Active Roll Control automatically stabilizes the boat against lateral tilt in changing conditions, such as wind, load changes or waves. Turns remain controlled at all speeds, making travel smooth and safe.
Zipwake’s waterproof and clear control panel is designed for use in all lighting conditions. The sunlight-readable color display and ‘Auto’ button enable fully automatic trimming with a single push of a button.
The kit includes:
2 x Trim plates (Chine right and Chine left), including 3 meter cables and cable protectors.
1 x Distribution unit, including 4 meter power cable.
1 x Standard cable 7 m
1 x Integration module
Model: IT300-S CHINE PORT / IT300-S CHINE PRO STBD
Length: 300 mm (12 inches) / 300 mm (12 inches)
Weight: 2.2 kg (4.9 lbs) / 2.2 kg (4.9 lbs)
Maximum speed: 60 knots
Blade travel: 30 mm (1.2 in)
Blade speed: 20 mm/s (0.8 in/s)
Cable length: 3 m (10 ft), extendable to 6 m (20 ft)
Operating voltage: 12 – 32 V DC
Power consumption: 25 W maximum
Operating temperature: 0° – +40°C (+32° – +104°F)
Storage temperature: -40° – +90°C (-40° – +194°F)
Water resistance: IP68 (at 5 m depth)
Compatibility: CE, FCC
| Svars | 8 kg |
|---|---|
| Dimensijas | 300 × 149 mm |
| Technical name | 2011519 KBI300-S CHINESE INTEGRATION |
