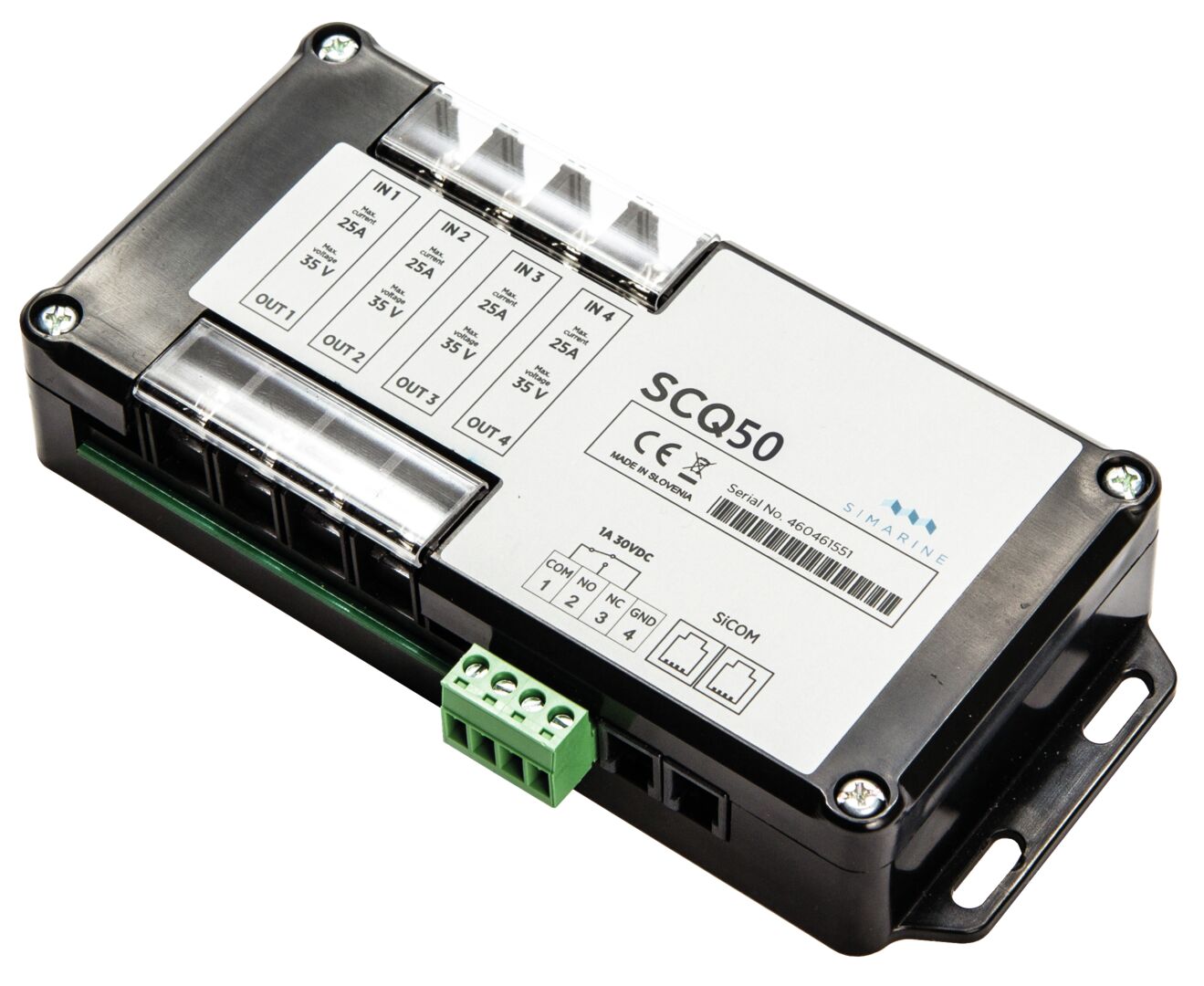

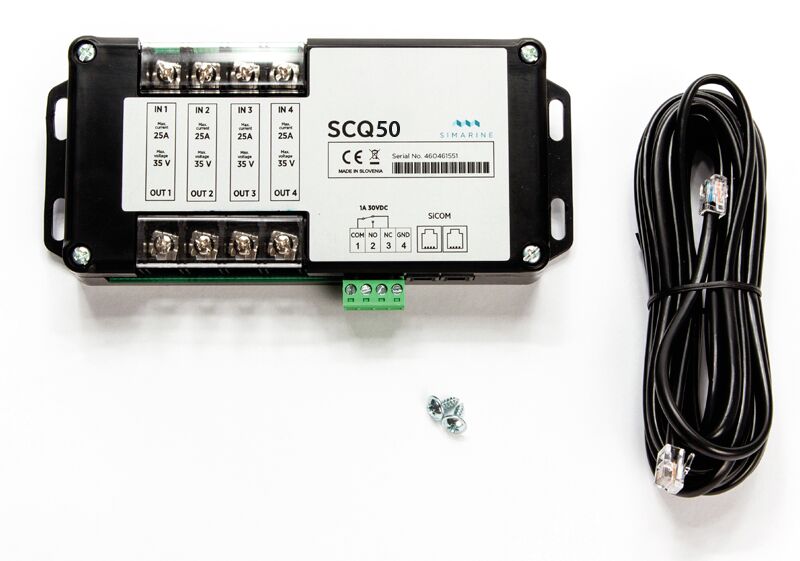

DIGITAL SHUNT MODULE
179,33 €
Highly versatile digital shunt module for monitoring consumers and/or generators, max. 50A/channel.
• Up to four SCQ50 modules can be connected to the PICO system.
• Channels can be combined to achieve higher current capacity.
Connection options:
Consumers: refrigerator, freezer, meters, lights
Generators: solar panels, shore power, wind generator, water generator
Connections:
Max. 4 consumers
Max. 4 generators
1 x relay output
Technical data:
OPERATION
Voltage range: 6 – 35 V
Temperature range: -20 – +70 °C
Power consumption @ 12 V: 3.5 mA
VOLTAGE MEASUREMENT INPUTS: 4
Measuring range: 0.01 – 50A
Resolution: 0.01A
Accuracy: ± 0.6 %
Sampling interval: 100 ms
Maximum continuous current: 50A
Peak current (<1 min.): 35A
Peak current (<5 s): 50A
Voltage drop @ 25A: 35 mV
Max. voltage at terminals: 35V
RELAY OUTPUT: 50 V. 1A
SICOM TERMINALS: 2
| Svars | 0,52 kg |
|---|
