4-WAY DIGITAL SHUNT MODULE

Name: 4-WAY DIGITAL SHUNT MODULE - Marimen.com
SKU: 9514201024
Price: 184.86 EUR
Availability: InStock

223,68 €

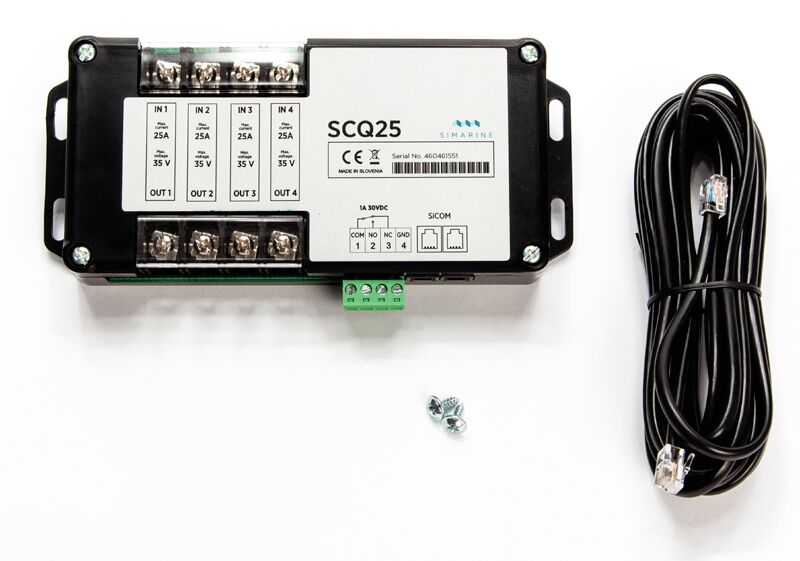

Highly versatile digital shunt module for monitoring consumers and/or generators, max. 25A/channel.

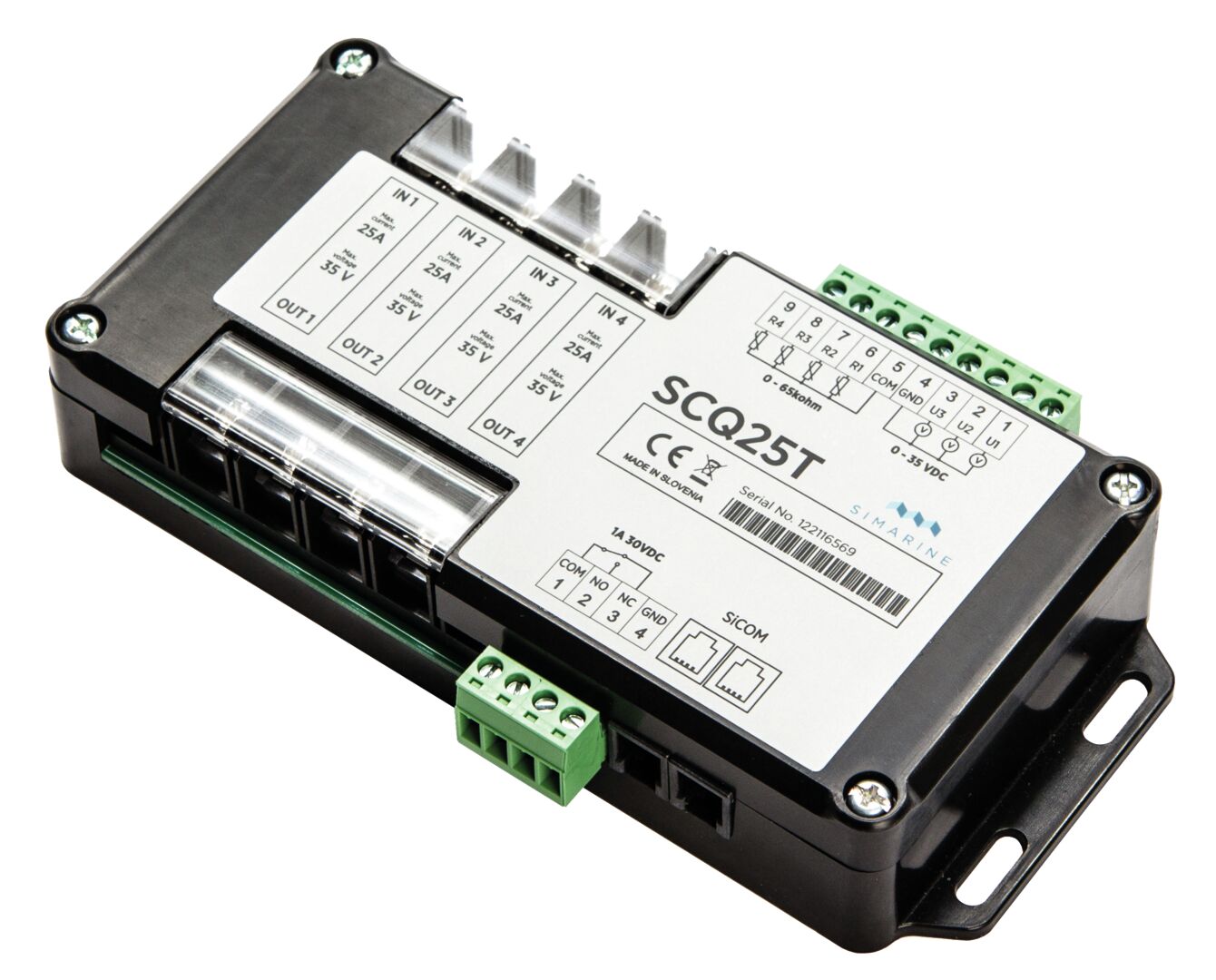

• SCQ25T enables level monitoring of up to 7 tanks, 3 battery voltage monitoring and 4 temperature level monitoring.
• Max. 4 SCQ25/ SCQ25T modules can be connected to the PICO system.
• Channels can be combined to achieve higher current endurance.

Connection options:
Consumers: refrigerator, freezer, meters, lights
Generators: solar panels, shore power, wind generator, water generator
Tank levels: fuel, fresh water, grey water, black water
Tank level sensors: resistance, voltage, ultrasonic
Temperature sensors: resistance
Battery voltage: start, propellers

Connections:
Max. 4 consumers
Max. 4 generators
3 x voltage inputs
4 x resistance inputs
1 x relay output

SKU: 9514201024 Kategorijas: Battery accessories, Battery control, Electricity, Maritim

Apraksts
Papildu informācija

Technical data:

OPERATION
Voltage range: 6 – 35 V
Temperature range: -20 – +70 °C
Power consumption @ 12 V: 3.5 mA

VOLTAGE MEASUREMENT INPUTS: 4
Measuring range: 0.01 – 50A
Resolution: 0.01A
Accuracy: ± 0.6 %
Sampling interval: 100 ms
Maximum continuous current: 25A
Peak current (<1 min.): 35A
Peak current (<5 s): 50A
Voltage drop @ 25A: 35 mV
Max. voltage at terminals: 35V

OPERATION
Voltage range: 6 – 35 V
Temperature range: -20 – +70 °C
Power consumption 12 V: 2.5 mA
Voltage measurement inputs: 4
Measurement range: 0 – 35 V
Resolution: 1 mV
Accuracy: ± 0.2 %
Sampling interval: 100 ms

RESISTANCE/NTC 10K INPUTS 4 PCS
Measurement range: 0 Ω – 65 kΩ
Accuracy: ± 3.0 %
Calibration points: 11

RELAY OUTPUT: 50 V. 1A
SICOM TERMINALS: 2
