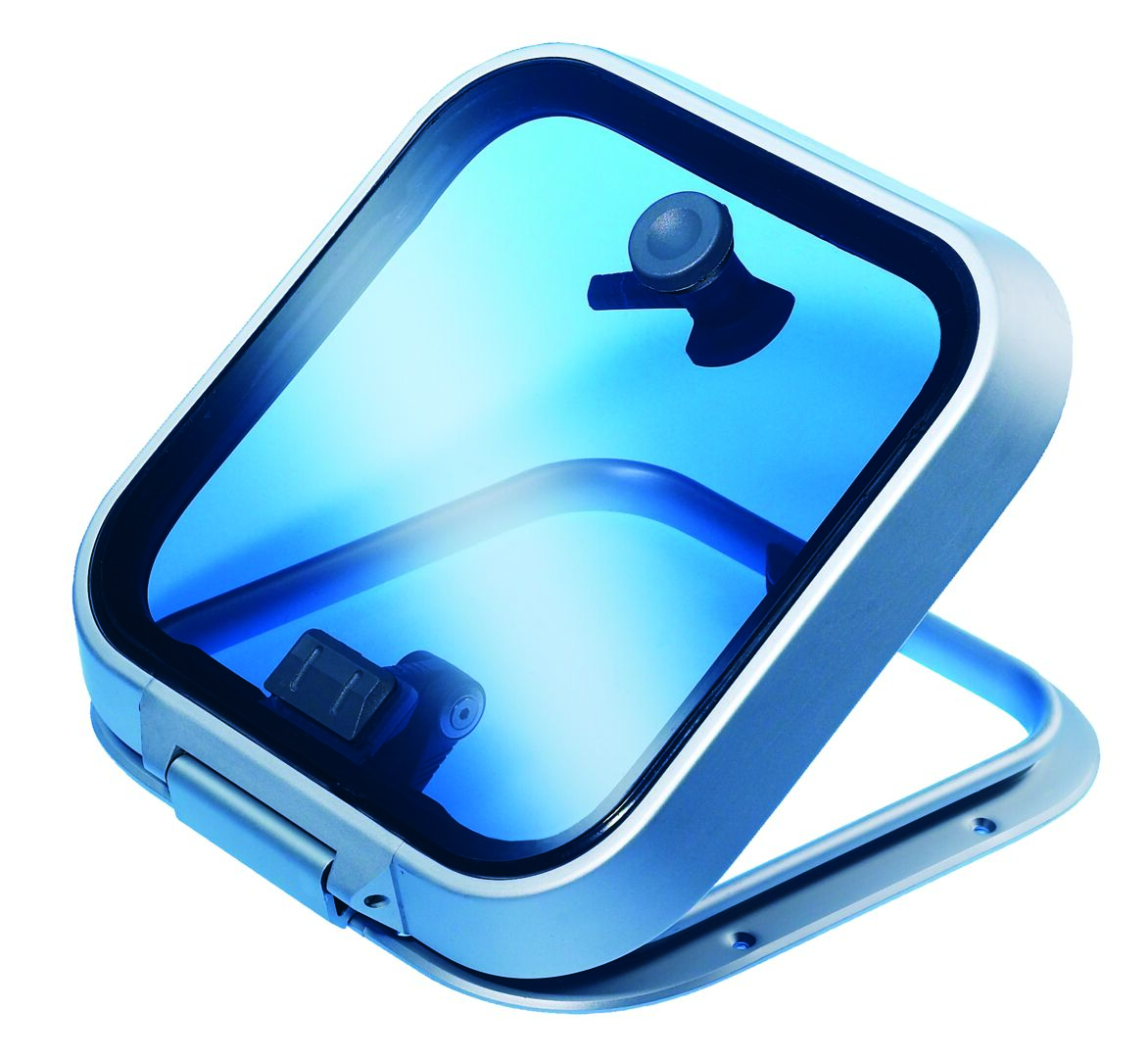

DOOR HATCH LEWMAR OCEAN SIZE 20, WITH RIM

Name: DOOR HATCH LEWMAR OCEAN SIZE 20, WITH RIM - Marimen.com
SKU: 9512406022
Price: 671.71 EUR
Availability: InStock

812,77 €

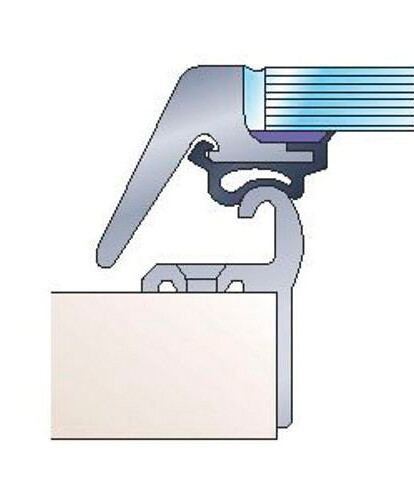

high-profile and classic hatch that has been fitted to thousands of boats worldwide since 1980. The robust construction offers the best possible protection from the elements in all situations. Mounting frame with 25 mm edge.

• Friction levers keep the hatch open in all positions up to 95°
• Corrosion-resistant anodized aluminum frame
• All sizes suitable for CE Zone 2 (deck, hatch, cockpit and transom)

SKU: 9512406022 Kategorijas: Deck hatches, Deck hatches, windows and curtains, Maritim, Refrigeration, cooling, water and air conditioning

Apraksts
Papildu informācija

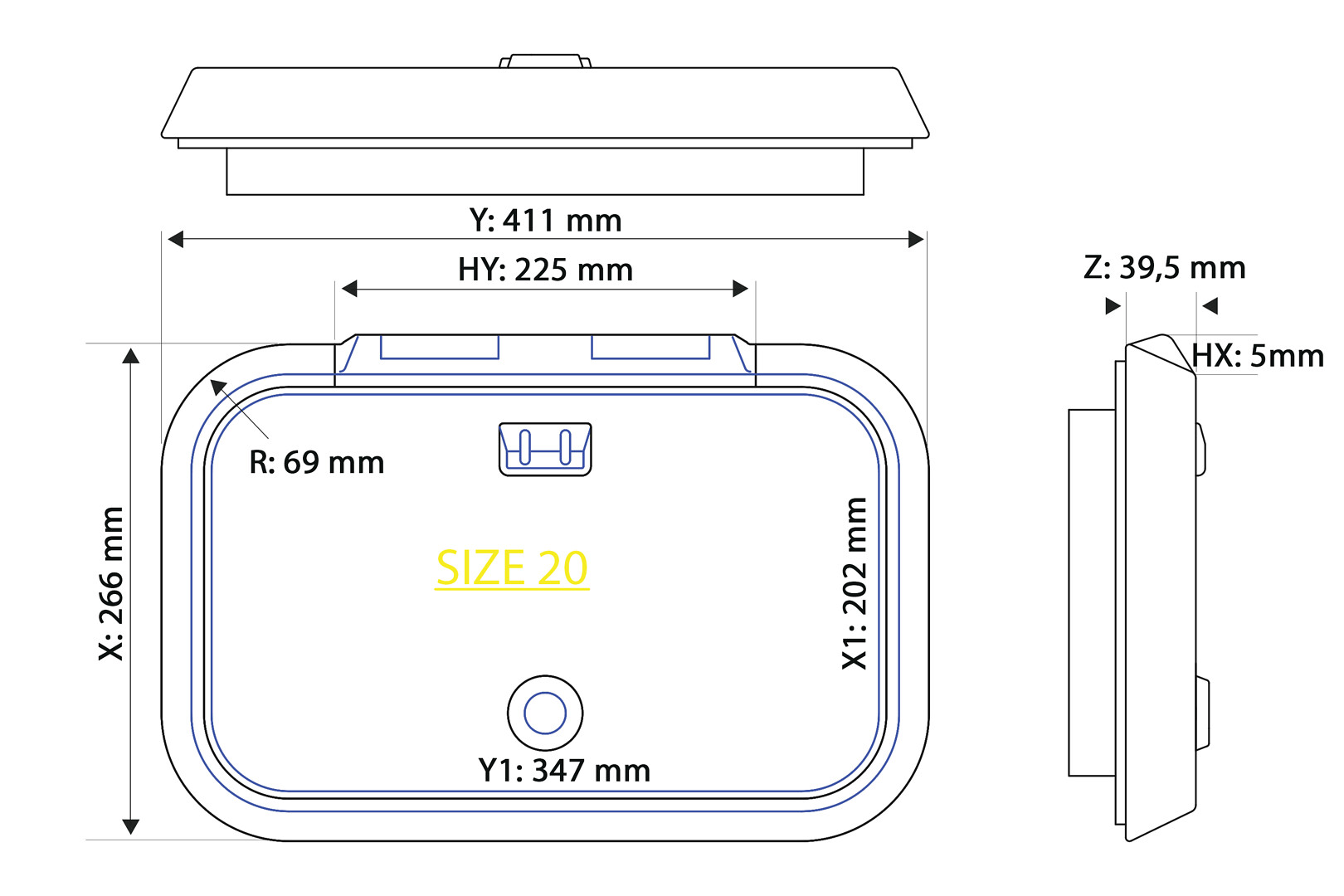

Technical data:

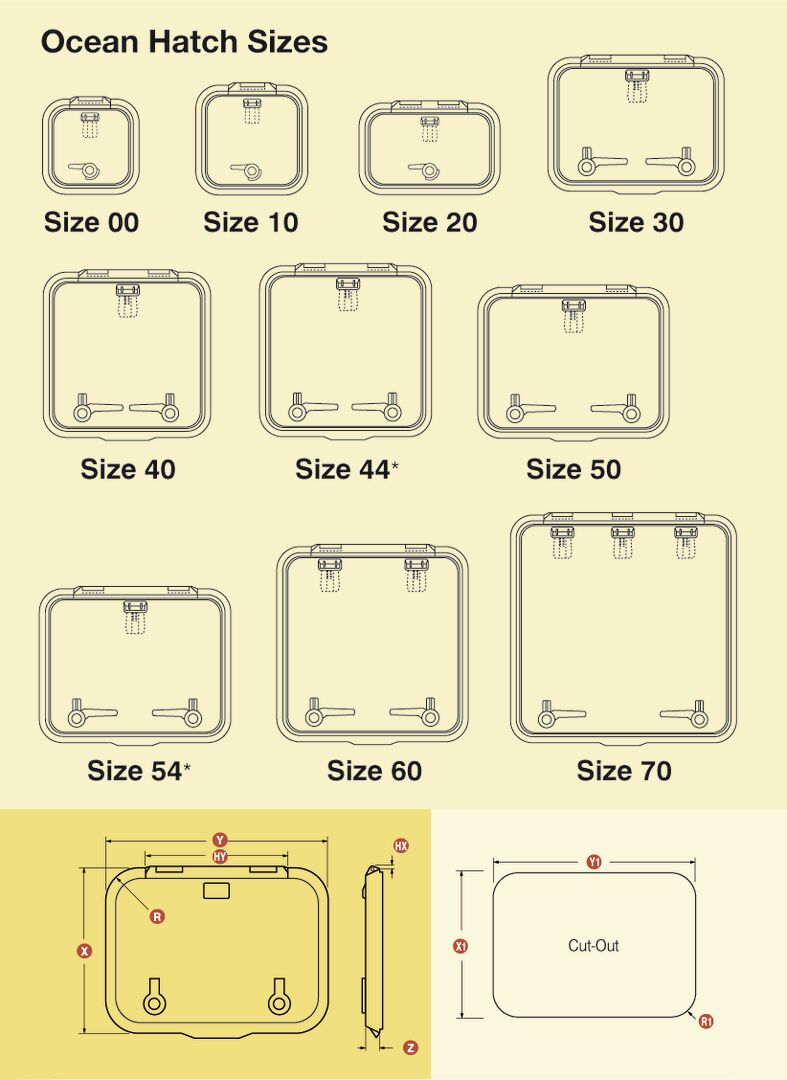

Size: 20
Acrylic color: Smoke gray
Acrylic thickness: 10 mm
Length X (mm): 266
Width Y (mm): 411
Height Z (mm): 39.5
Corner radius (mm): 69
Hinge length HX (mm): 5
Hinge width HY (mm): 225
Installation length X1 (mm): 202
Installation width Y1 (mm): 347
Installation corner radius (mm): 36.5

NOTE! The door should be installed on a flat surface, +/- 1 mm tolerance allowed.
