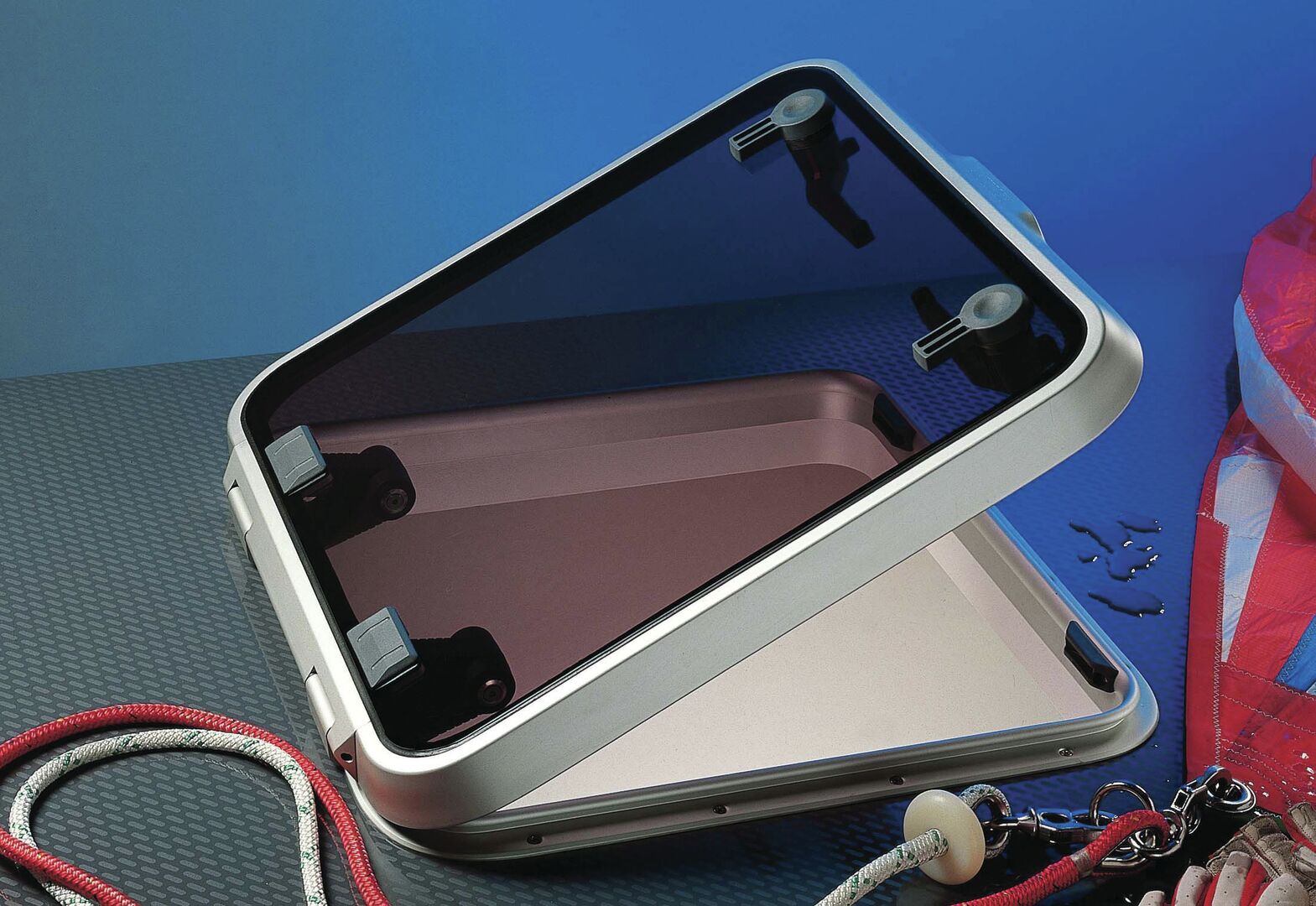

DOOR HATCH LEWMAR OCEAN SIZE 30, FLAT BOTTOM

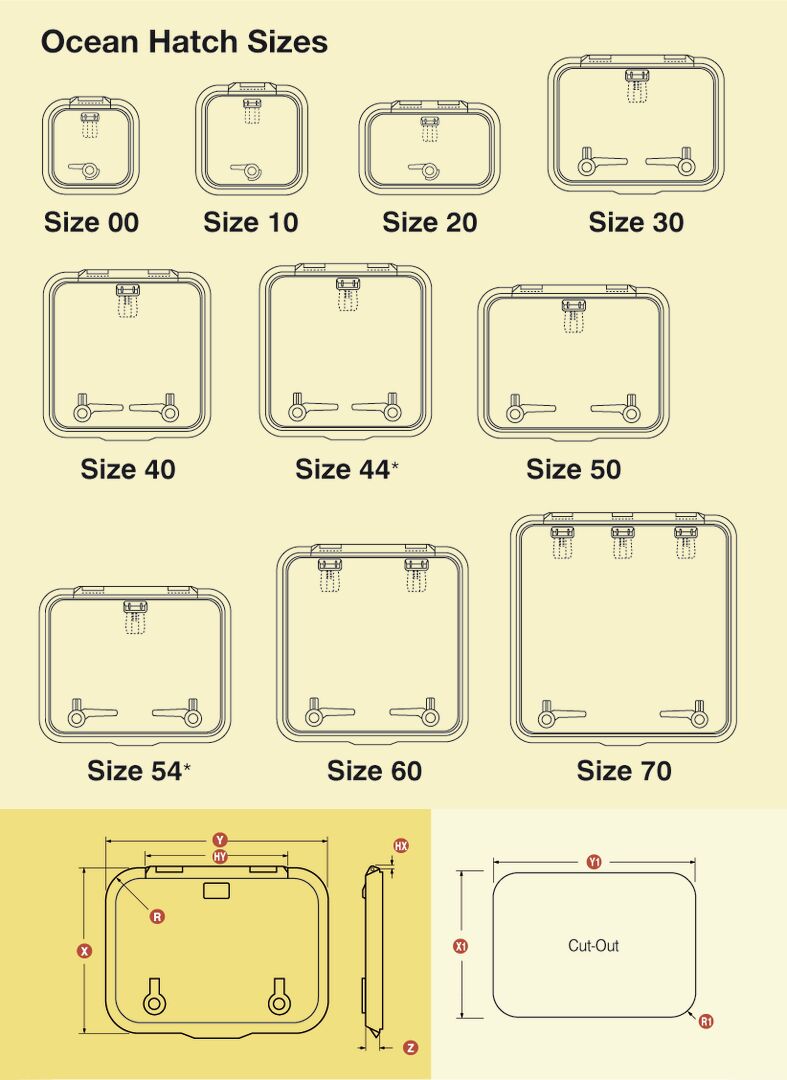

DOOR HATCH LEWMAR OCEAN SIZE 30, FLAT BOTTOM - Image 2

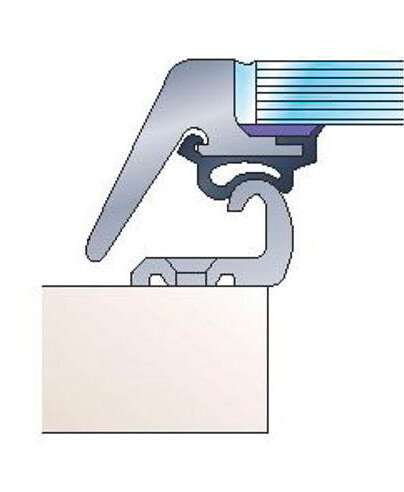

DOOR HATCH LEWMAR OCEAN SIZE 30, FLAT BOTTOM - Image 4

DOOR HATCH LEWMAR OCEAN SIZE 30, FLAT BOTTOM - Image 5

DOOR HATCH LEWMAR OCEAN SIZE 30, FLAT BOTTOM - Image 6

DOOR HATCH LEWMAR OCEAN SIZE 30, FLAT BOTTOM

Name: DOOR HATCH LEWMAR OCEAN SIZE 30, FLAT BOTTOM - Marimen.com
SKU: 9512406023
Price: 992.83 EUR
Availability: InStock

1 201,32 €

High profile and classic deck hatch, installed on thousands of boats worldwide since 1980. Robust construction provides the best possible protection from the elements in all situations. Mounting frame on a flat base.

• Friction levers keep the hatch open in all positions up to 95°
• Corrosion resistant anodized aluminum frame
• All sizes suitable for CE Zone 2 (deck, hatch, cockpit and transom)

SKU: 9512406023 Kategorijas: Deck hatches, Deck hatches, windows and curtains, Maritim, Refrigeration, cooling, water and air conditioning

Apraksts
Papildu informācija

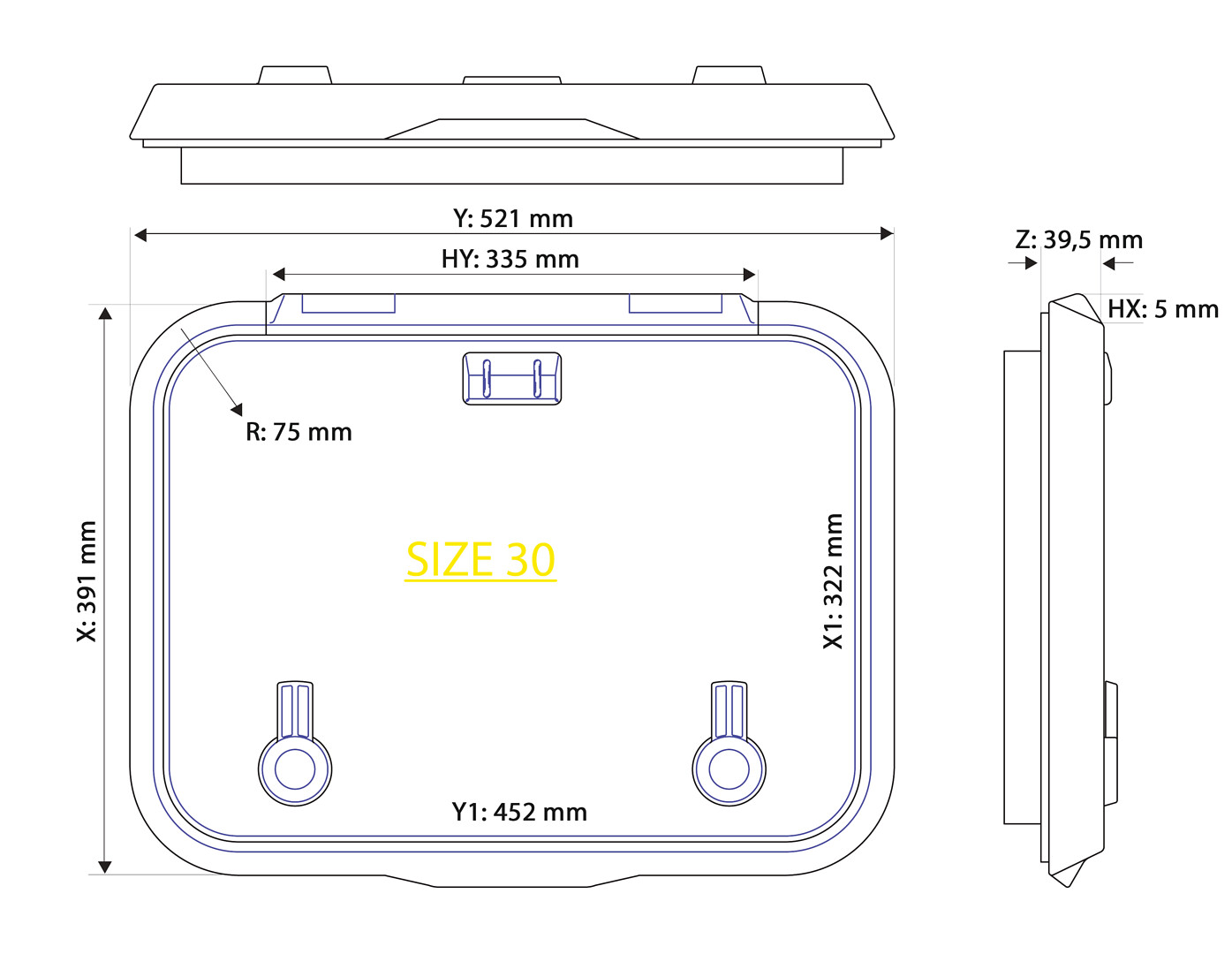

Technical data:
Size: 30
Acrylic color: Smoke gray
Acrylic thickness: 10 mm
Length X (mm): 391
Width Y (mm): 521
Height Z (mm): 39.5
Corner radius (mm): 75
Hinge length HX (mm): 5
Hinge width HY (mm): 335
Installation length X1 (mm): 322
Installation width Y1 (mm): 452
Installation corner radius (mm): 40

NOTE! The door should be installed on a flat surface, +/- 1 mm tolerance allowed.
