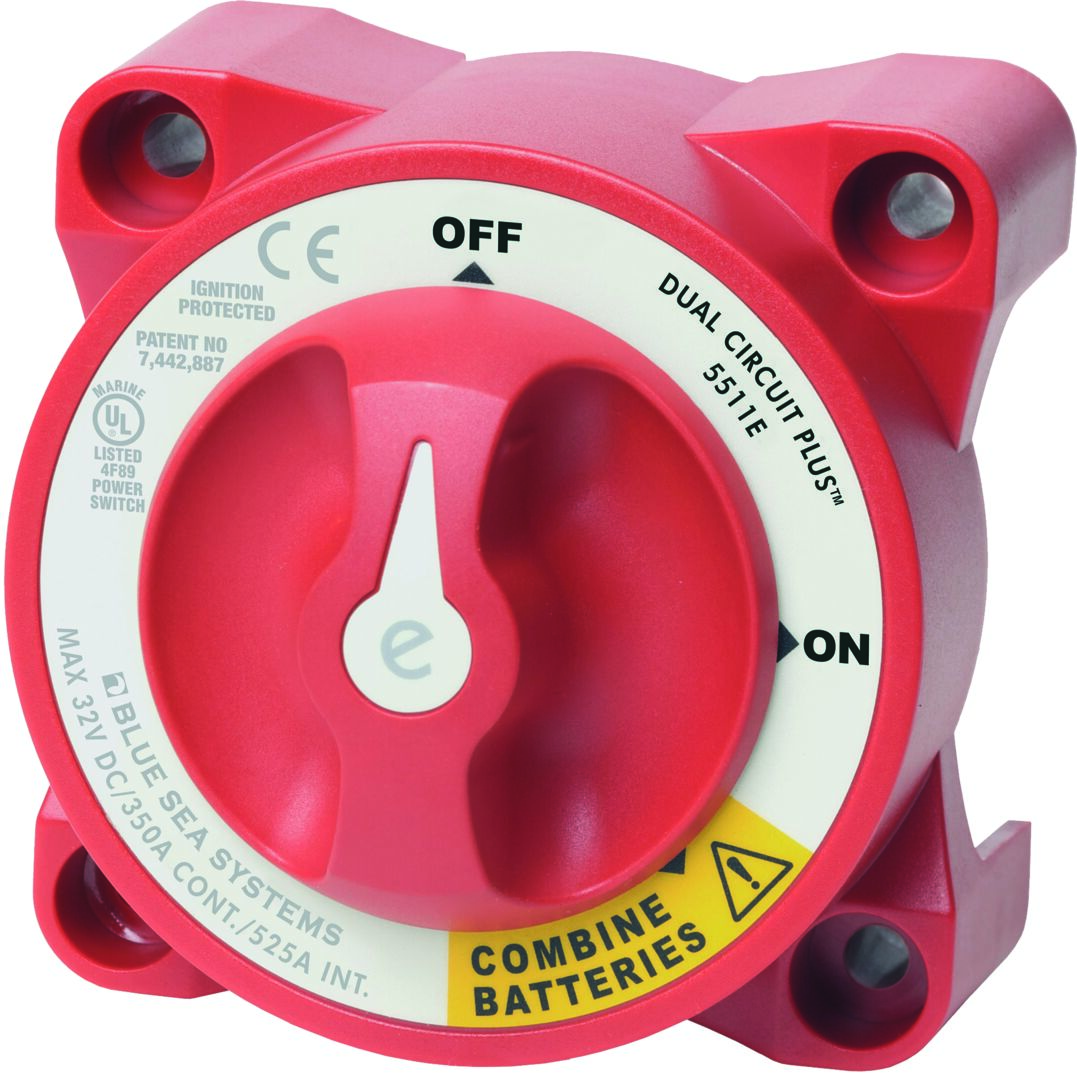

E-SERIES MAIN POWER SWITCH ON-OFF-EMERGY-BOTH
91,60 €
E-Series Mini Dual Circuit Plus™ Main Power Switch ON-OFF-EMERGY-BOTH.
Connects isolated battery banks to all loads or connects battery banks to all loads.
• Connect before disconnect feature allows switching between battery banks without power loss
• Spark-proof – safe to install even on gasoline powered boats

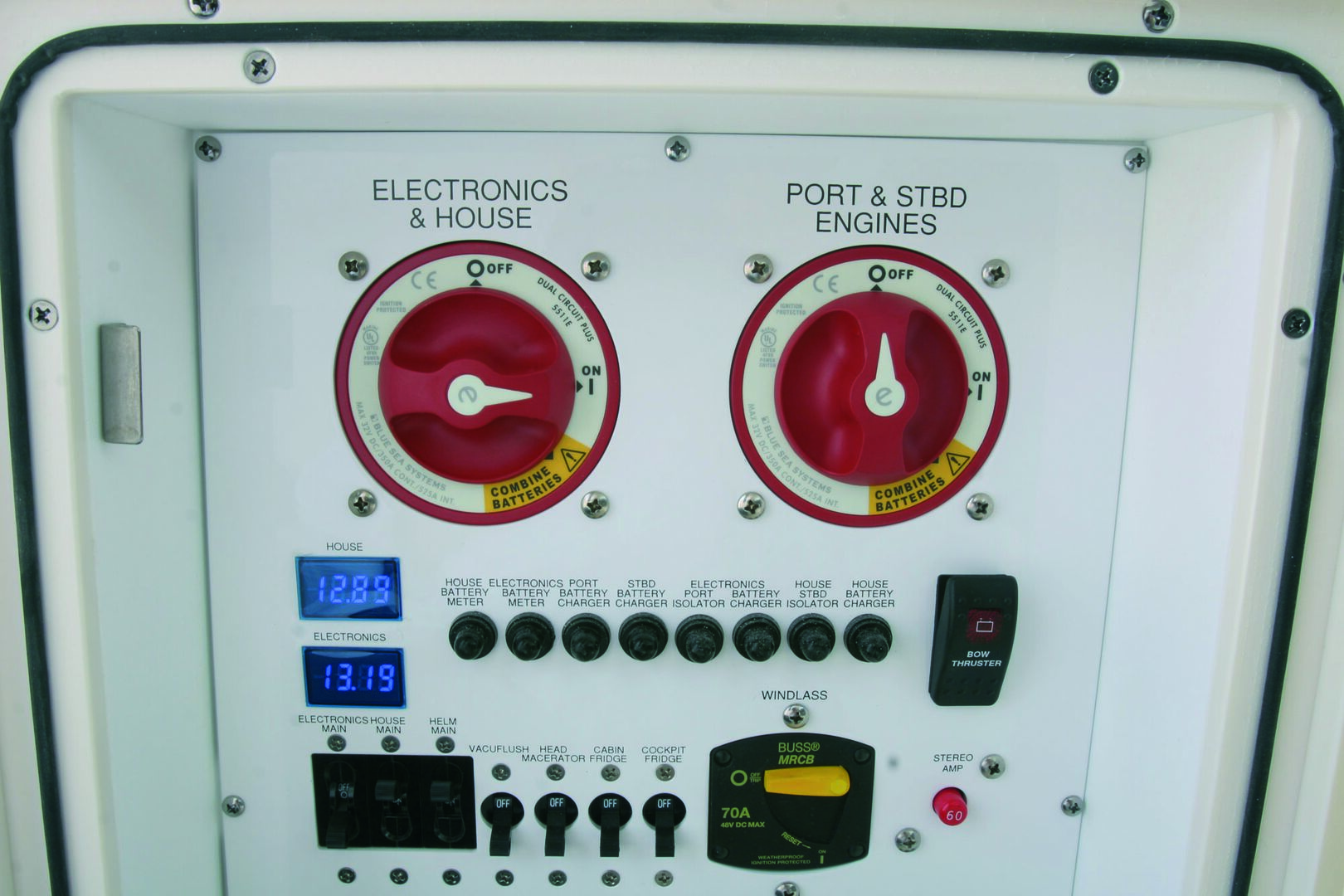

• Housing design allows for panel mounting from either the front or rear
TECHNICAL DATA:
Breaker type: Dual circuit
Color: Red
Breaker positions: 3
Battery connection: Yes
Alternator field disconnection: No
Maximum voltage: 32V DC
Continuous current rating: 350A
Intermittent current rating: 525A (5 min)
Starting current rating 30 s: 700A / circuit
Battery inputs: 2
Cable opening for 107mm² cables: 27.94 mm
Cable size: 107mm²
Mounting holes: Suitable for M6 screws
Connector pin size: M10
Weight: 0.59 kg
| Svars | 0,59 kg |
|---|---|
| Technical name | BLUE SEA 5511E-BSS |
