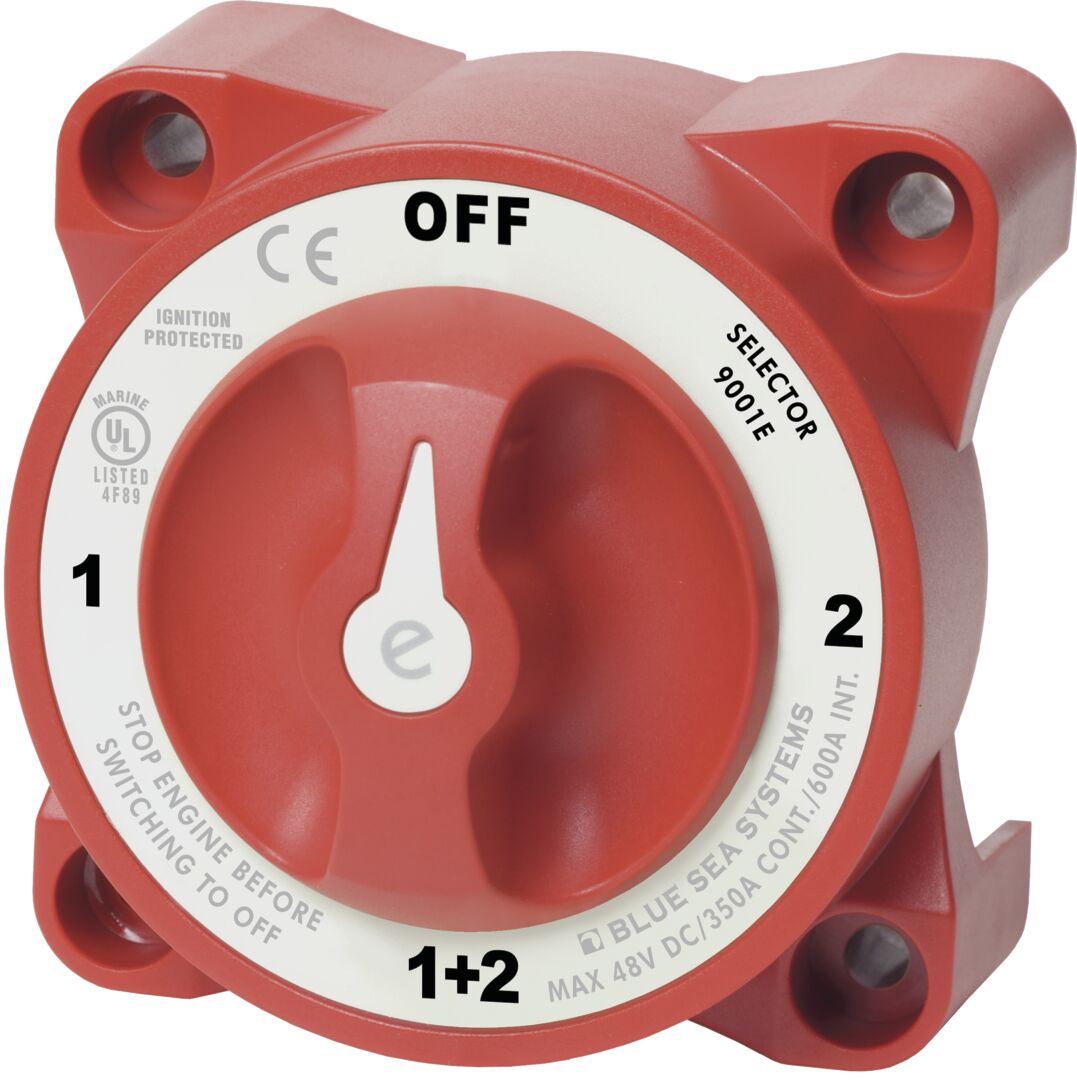

HD SERIES MAIN POWER SWITCH 1-2-OFF-BOTH, RED
72,31 €
Connects isolated battery banks to all loads or connects battery banks to all loads.
• Connect before disconnect function allows switching between battery banks without power interruption

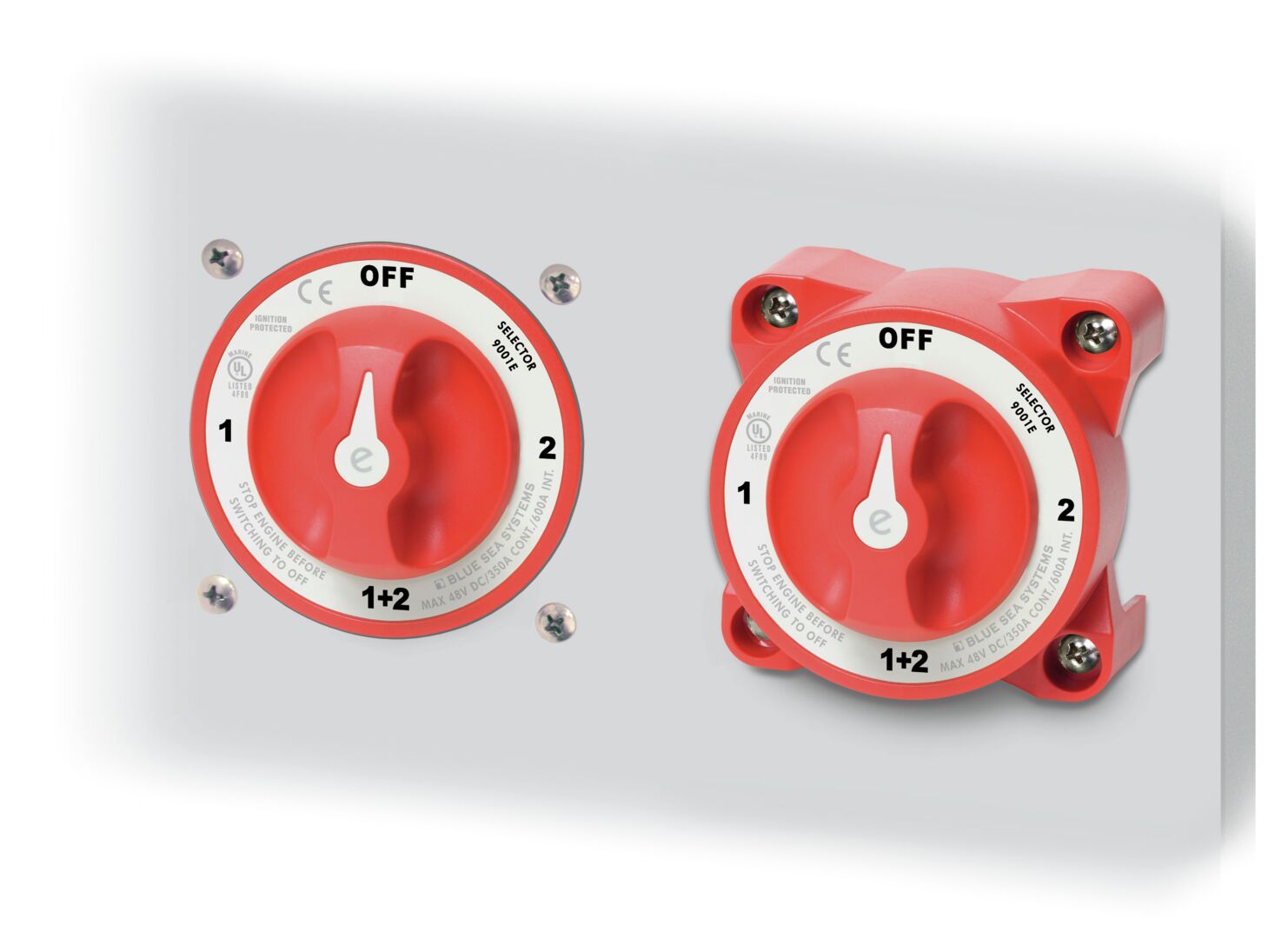

• Housing design allows for panel mounting from either the front or rear
• Allows for installation of two 95mm² (4/0 AWG) battery cables
TECHNICAL DATA:
Switch type: 4-position toggle
Color: Red
Number of switch positions: 4
Battery connection: Yes
Alternator field disconnection: No
Maximum voltage: 32V DC
Terminal pin tightening torque: 15.82 Nm
Continuous current rating: 350A
Intermittent current rating: 600A (5 min)
Starting current rating 30 s: 1200A

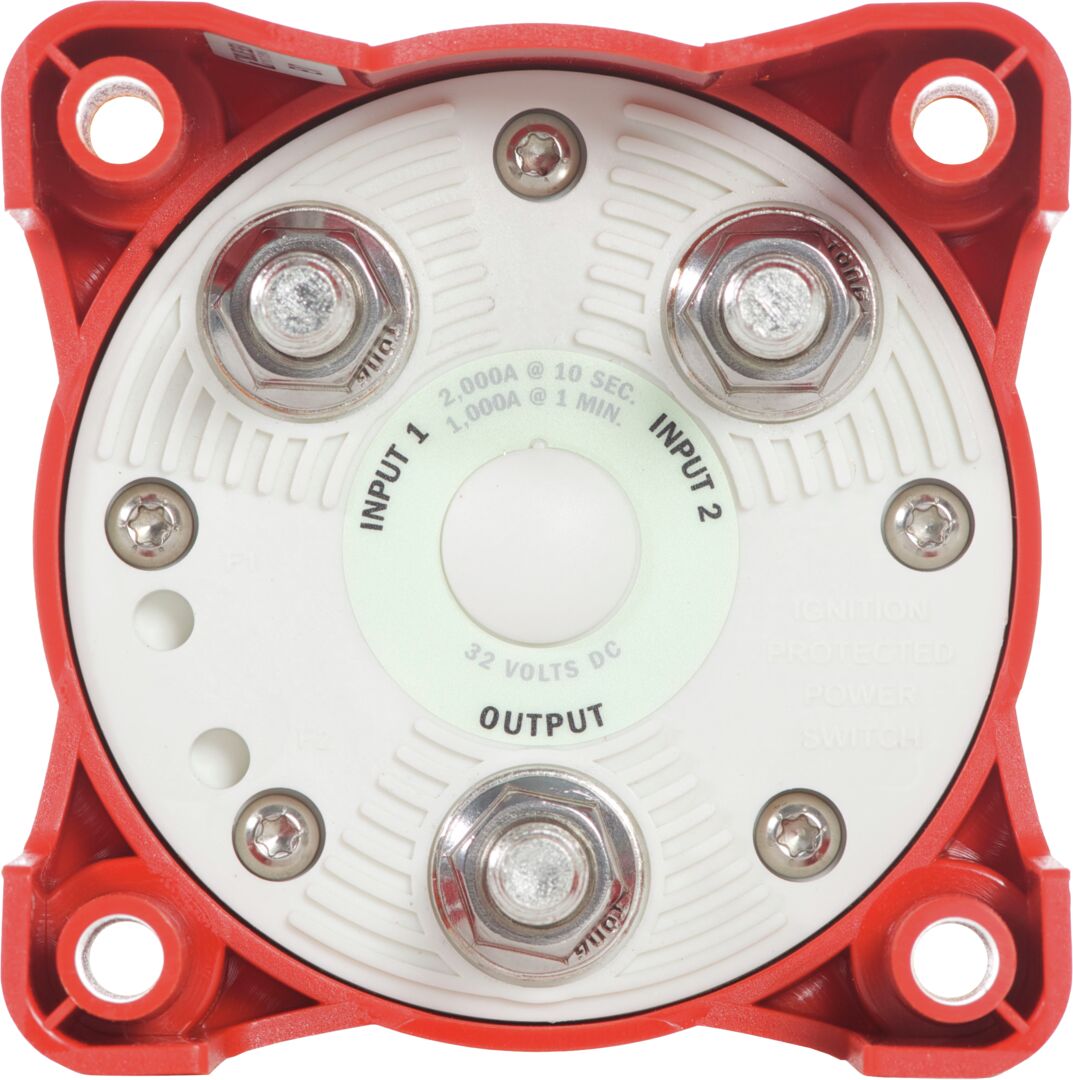

Number of battery inputs: 2
Cable opening For 107mm² cables: 27.94 mm
Cable size: 107mm²
Mounting holes: For M6 screws
Terminal pin size: M10
Weight: 0.59 kg
| Svars | 0,59 kg |
|---|---|
| Technical name | BLUE SEA 9001E-BSS |
