TECHNICAL DATA:
Switch type: 1-pole ON-OFF
Color: Red
Switch positions: 2
Battery connection: No
Alternator field disconnection: No
Maximum voltage: 48V DC
Terminal tightening torque: 15.82 Nm
Continuous current rating: 350A
Instantaneous current rating: 600A (5 min)
Starting current 30 s: 1200A
Battery inputs: 1 pc
Cable opening for 4/0 AWG cables: 27.94 mm
Cable size: 120mm² (4/9 AWG)
Mounting holes: suitable for M6 screws
Connector size: M10
Weight: 0.59 kg
| Svars | 0,59 kg |
|---|---|

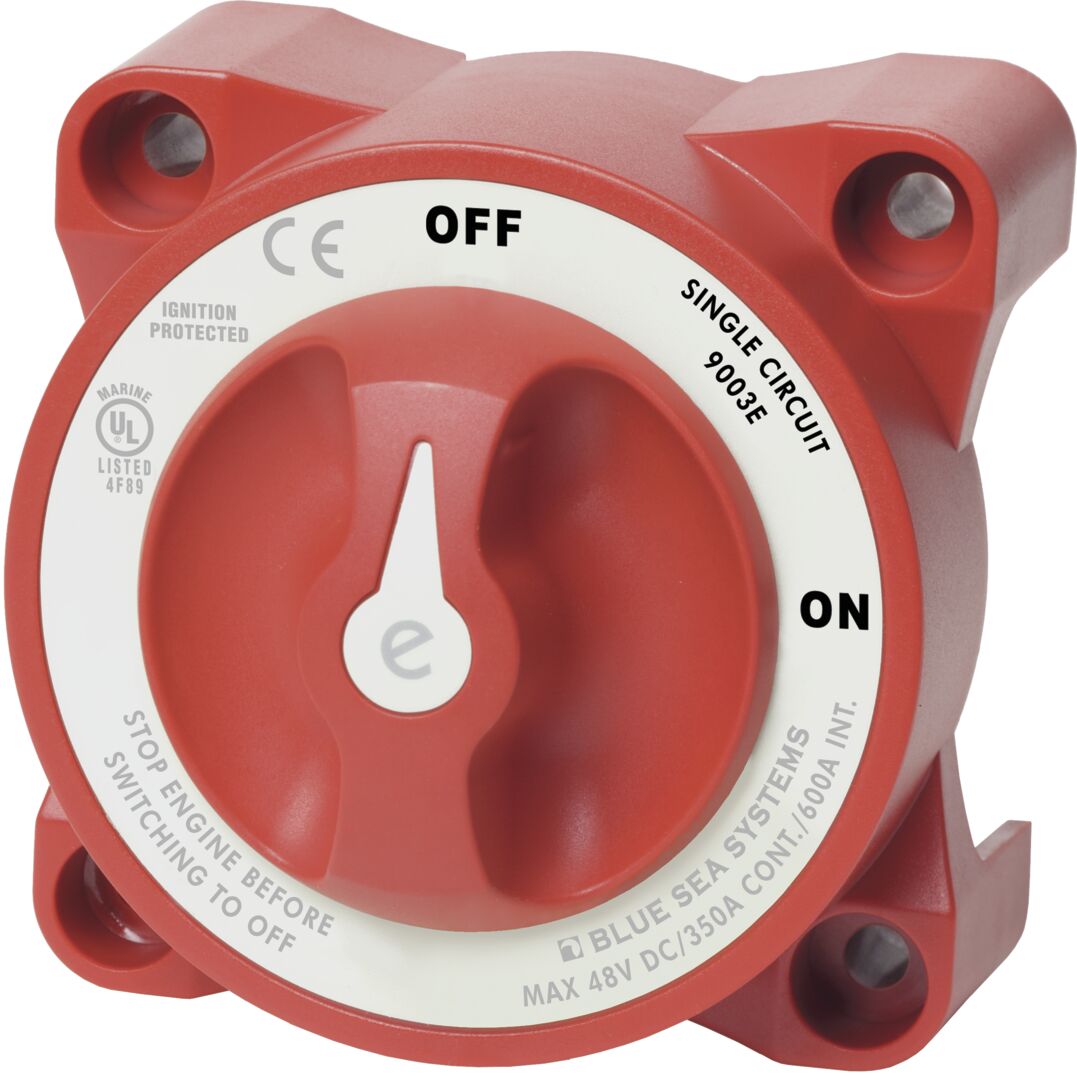

| Technical name | BLUE SEA 9003E-BSS |
