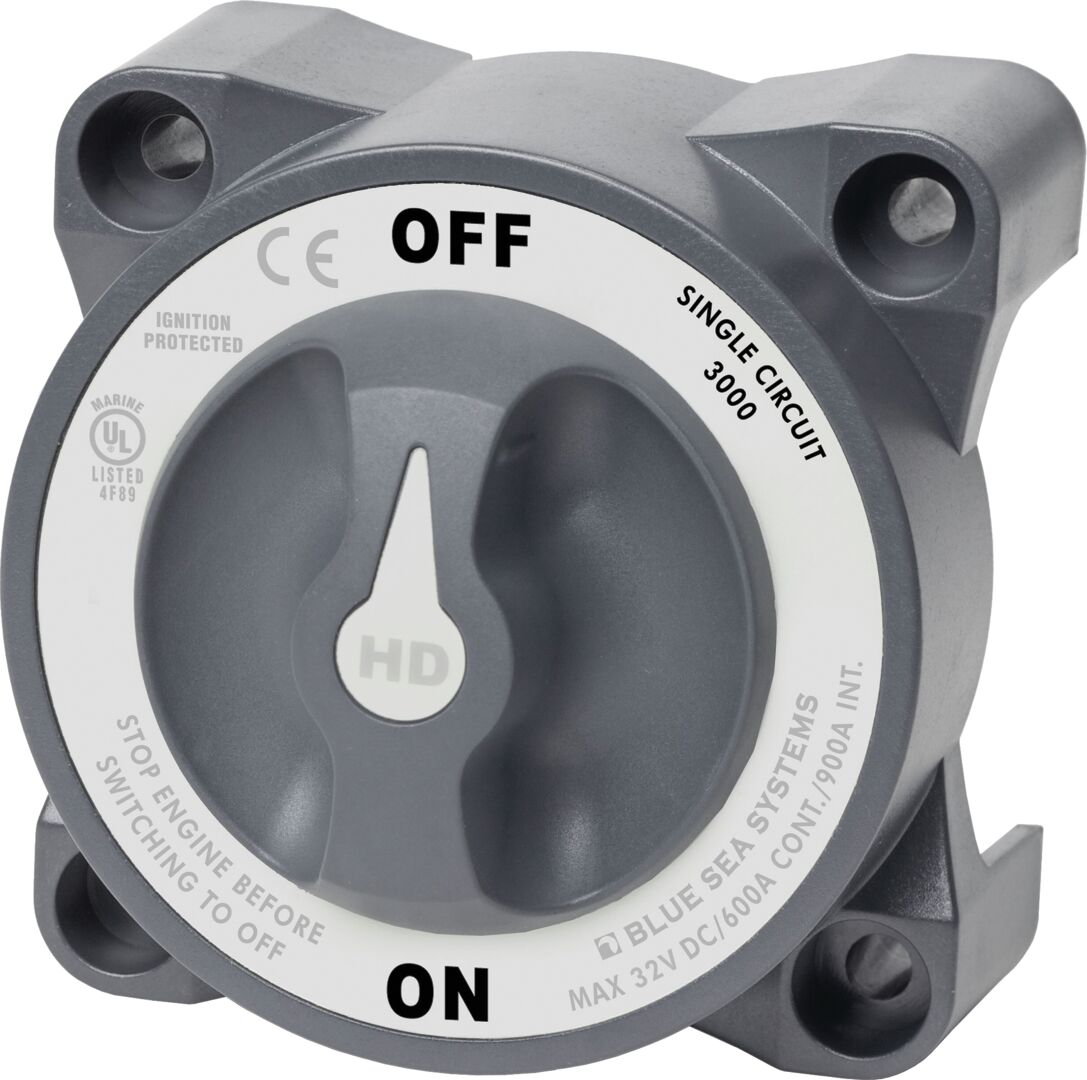

HD SERIES MAIN POWER SWITCH, ON-OFF
131,13 €
HD-SERIES HEAVY DUTY ON-OFF BATTERY CIRCUIT BREAKER
Connects one battery to one load group.
• Spark-proof – safe to install even on gasoline-powered motorboats

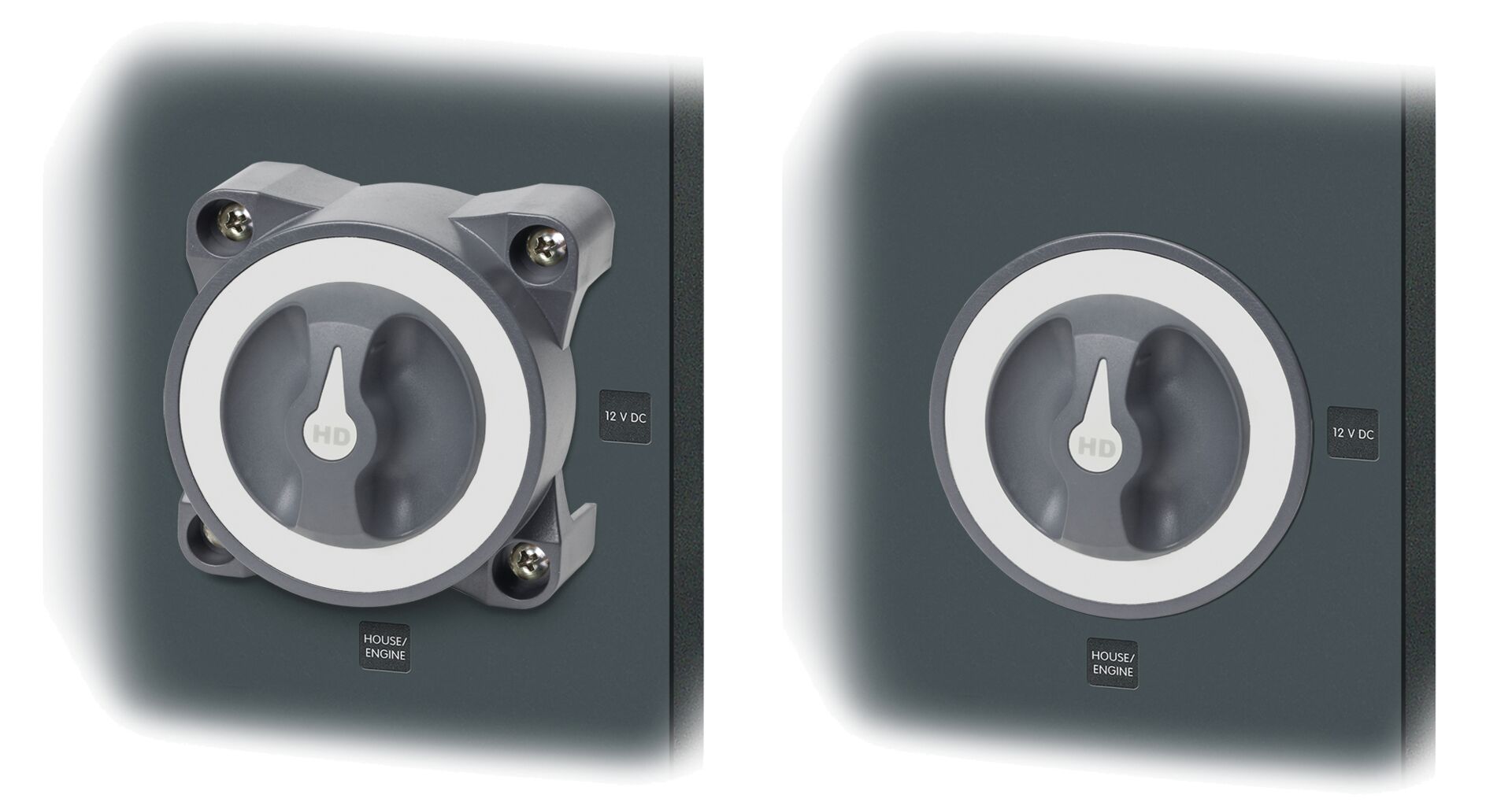

• Housing design allows for panel mounting from either the front or rear
• Allows for the installation of two 95mm² (4/0 AWG) battery cables
TECHNICAL DATA:
Switch function: Single pole ON-OFF
Color: Gray
Switch positions: 2
Battery connection: No
Alternator field disconnection: No
Maximum voltage: 32V DC
Terminal pin tightening torque: 24.86 Nm
Continuous current rating: 600A
Intermittent current rating: 900A (5 min)
Starting current 30 s: 1750A
Number of battery inputs: 1
Cable opening for 107mm² cables: 27.94 mm
Number of cables: Two cables
Cable cross-section: 107mm²
Mounting holes: For M6 screws
Terminal pin size: M12
Weight: 0.59 kg
| Svars | 0,59 kg |
|---|---|
| Technical name | BLUE SEA 3000-BSS |
