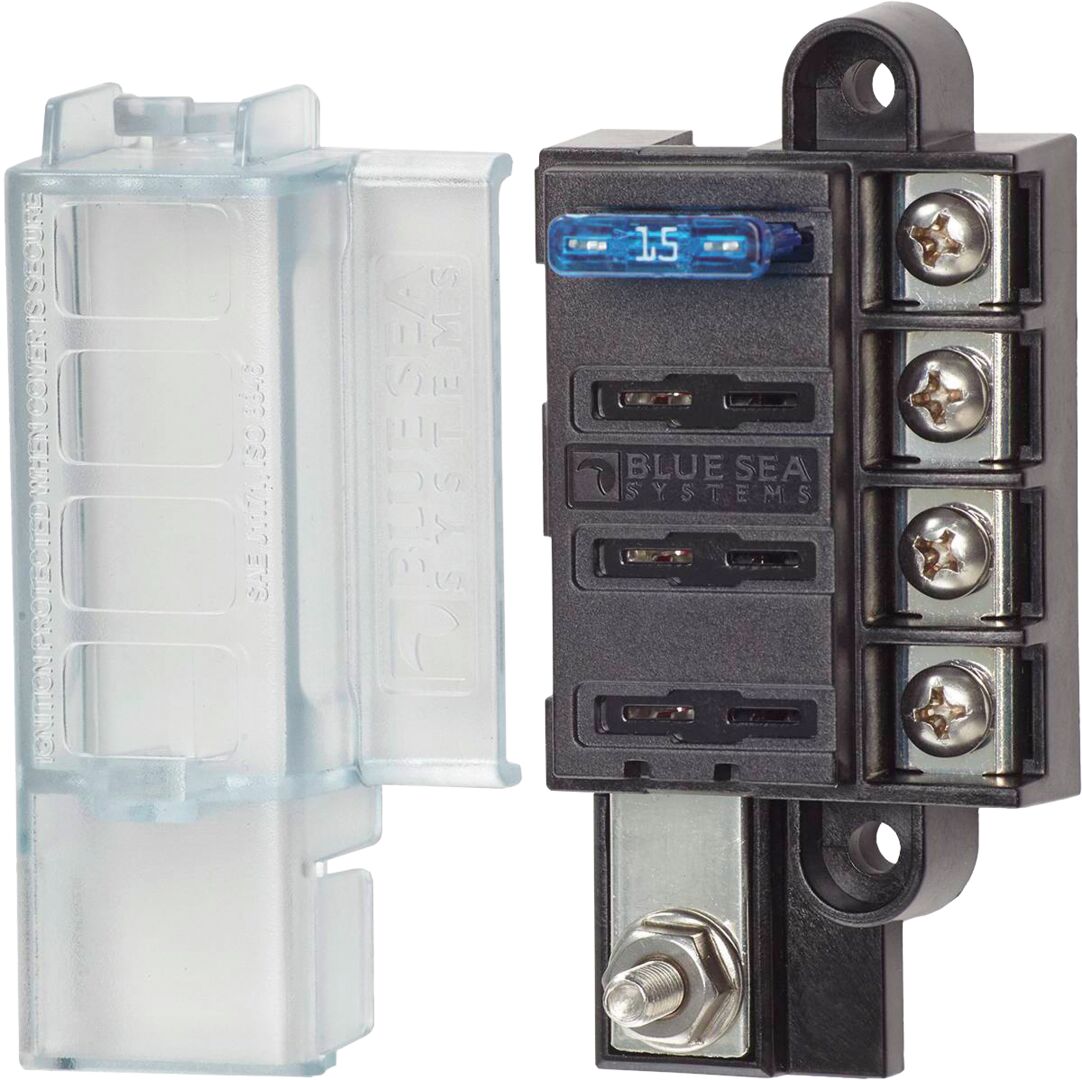

FUSE BOX WITH COVER 4 FUSES
47,24 €
• For M8 ring terminals
• Max. 32 Volts DC
• Swing-out solution allows fuse replacement without removing the terminals
• RST pins, good corrosion resistance, high tightening torque ensures good electrical contact
• UL 94-V0 body material tolerates high temperatures
• Molded pins ensure safe connections
• Insulating cover meets ABYC/USCG requirements
• Openings in the cover allow cables to be pulled in different directions
• Fuses can be ordered separately
TECHNICAL DATA:
Number of Circuits: 4
Maximum Current 100 A per Block | 30 A per Circuit
Maximum Voltage: 32 VDC
Mounting Method: M4 (#8) Screw
Terminal Tightening Torque: 2.71 Nm (24 in-lb)
Terminal Screw Tightening Torque: 1.69 Nm (15 in-lb)
Terminal Type: #8-32 Screws with Star Washer
Terminal Pin Size: #10-32
| Svars | 0,113 kg |
|---|---|
| Technical name | 5045-BSS |
