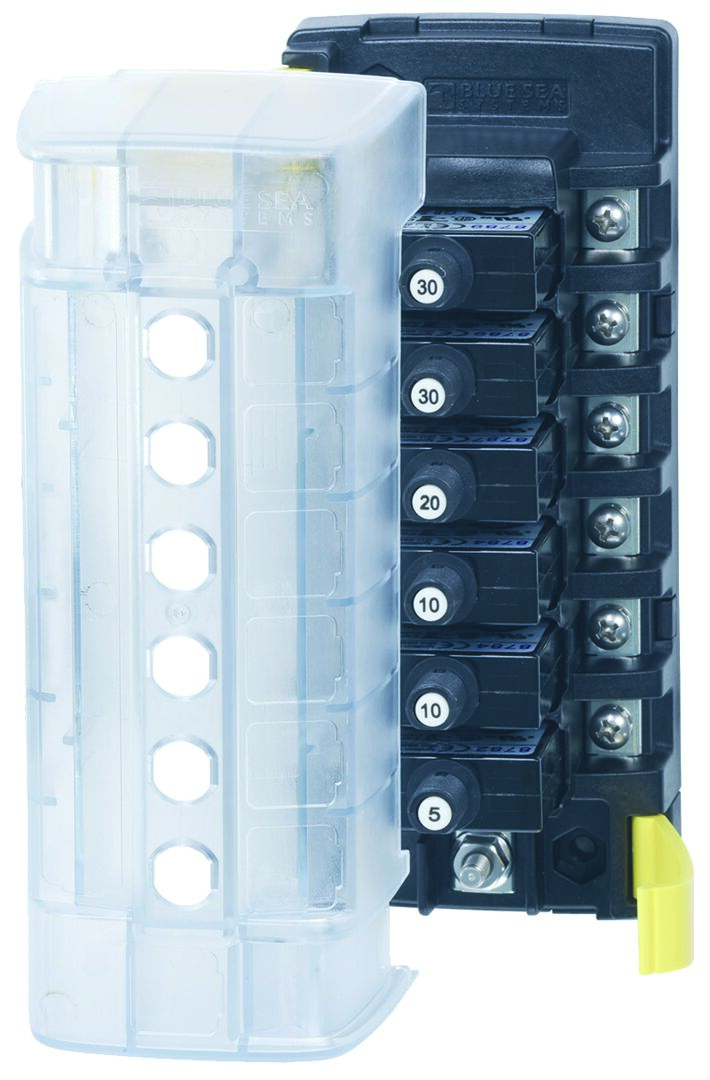

ST CLB FUSE BOX FOR 6 FUSES, SEPARATE SUPPLY
64,60 €
The advantage of resettable circuit breakers over conventional fuses is well known, but circuit breakers are more expensive and more difficult to install than conventional fuses. This panel solves these problems by utilizing compact, snap-in CLB circuit breakers that are easy to reset. As easy to install as conventional fuses.
FEATURES:
• Quick connectors – snap into place
• Tinned copper bars and screw terminals
• Transparent insulation and square label recesses, meets ABYC/USCG insulation requirements
• Easy-to-open snap-on cover
• Possibility to pull cables in two different directions
• Possibility to use ring terminals
• Optional button caps or decorative nuts can be mounted on the cover
• Square label recesses
TECHNICAL DATA:
Number of circuits: 6
Maximum current: 32A (per circuit)
40A (per linked circuit group)
Maximum voltage: 32V DC
Mounting: M4 screw or nut
Source: Independent source
Minimum operating temperature: -10° C
Maximum operating temperature: 60° C
Mounting distance: 143 mm
Screw terminal: #8-32 screws with star washers
Weight: 0.34 kg
| Svars | 0,34 kg |
|---|---|
| Dimensijas | 170 mm |
| Technical name | 5050-BSS BLUE SEA |
