GOBIUS C BASIC, 0–100%

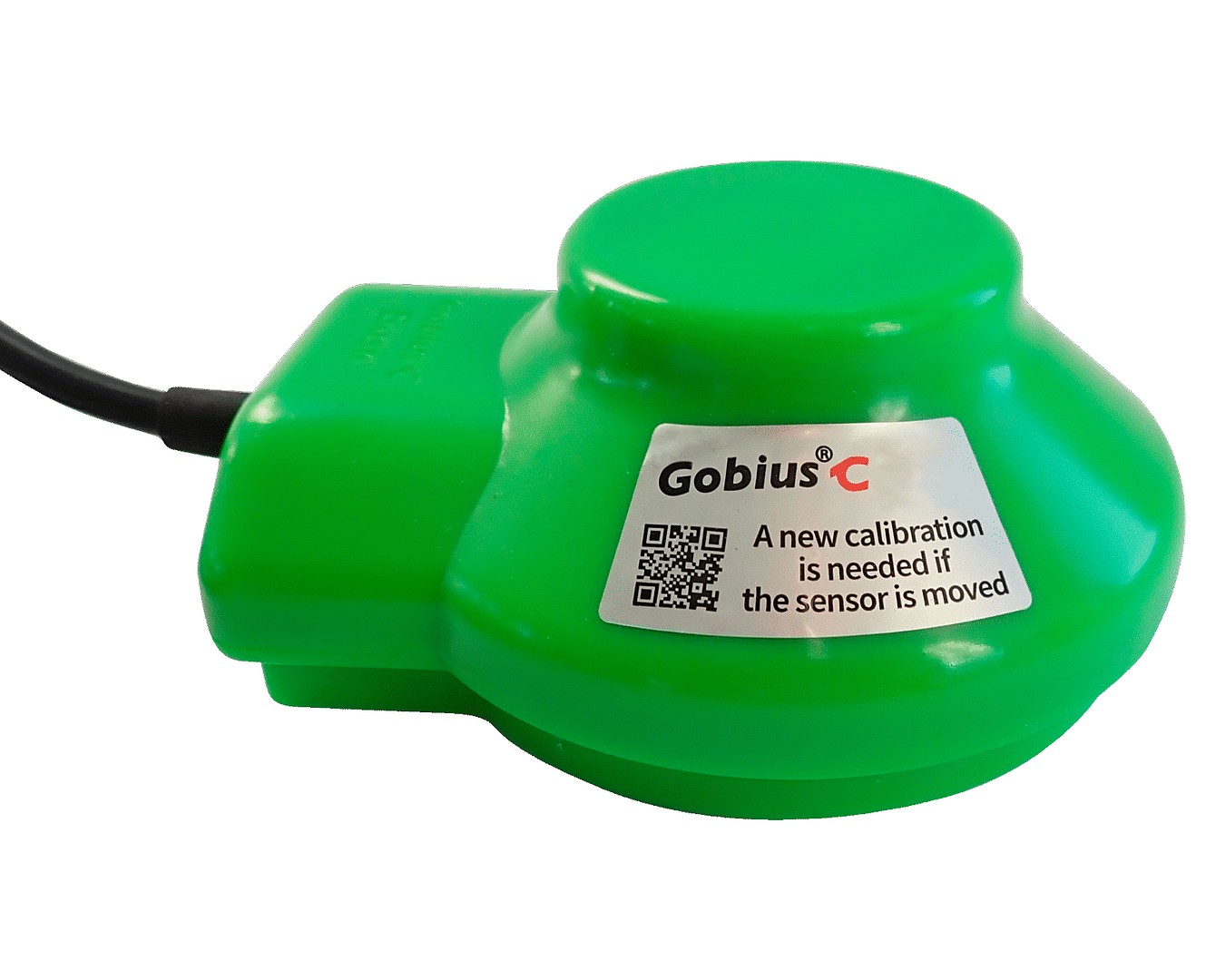

Gobius C Basic is an externally mounted sensor for liquid and waste tanks. It measures the liquid level using vibration technology without any mechanical moving parts or feedthroughs. The sensor accurately displays the tank’s fill level on a scale of 0–100%.

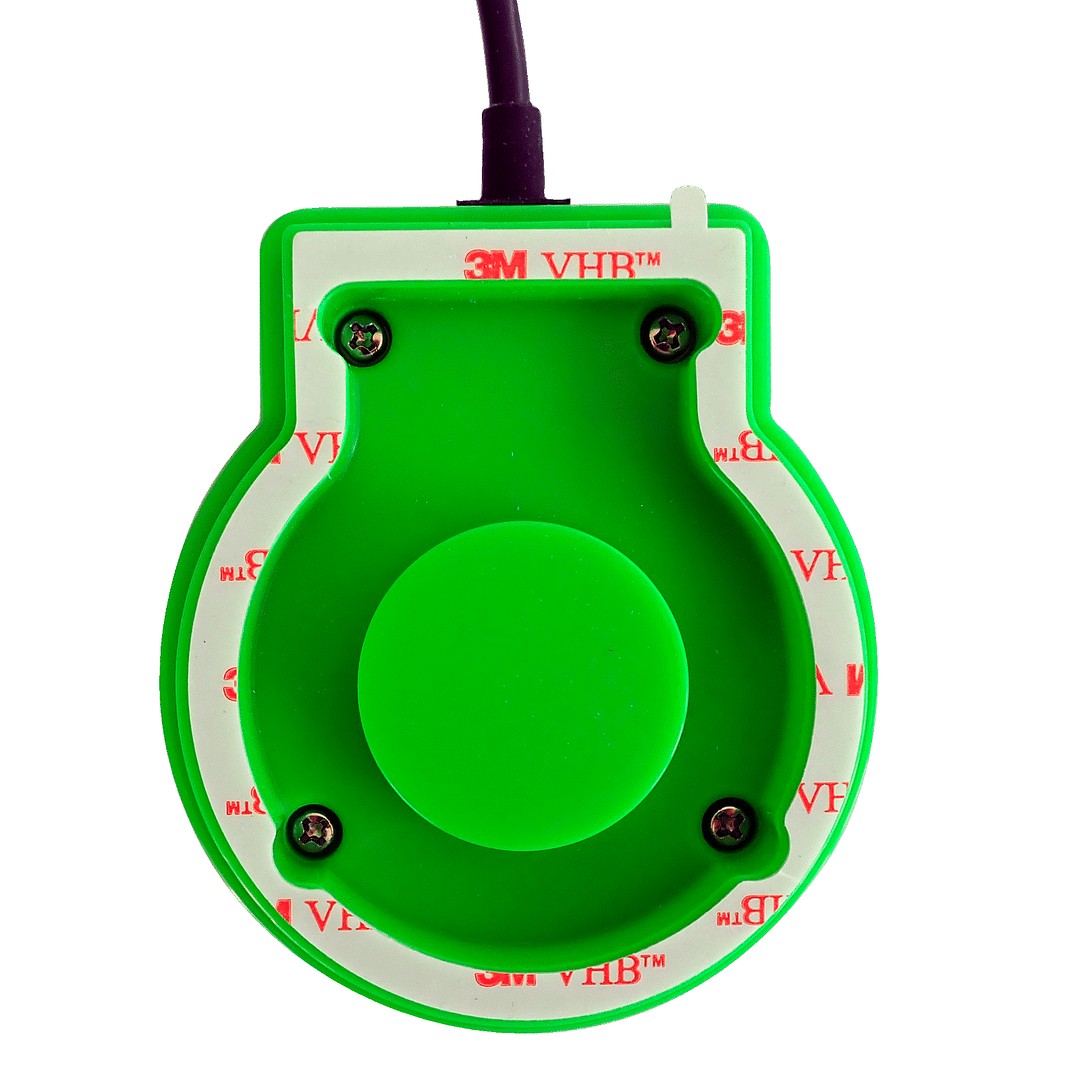

Installation is plug & play – no need to disassemble or modify the tank. The sensor is installed at the top of the tank, so there is no risk of leakage. Everything you need is included: sensor, 2 meter cable, quick guide, 3M cleaning cloth and additional mounting tape. The sensor operates on 12–24 V and is as easy to install as other products in the Gobius C series. The maximum tank depth is 2 meters.

The sensor can be connected to control systems and analog meters such as KUS, Wema, Faria (0–190 Ohm, 240–33 Ohm). In addition, two separate alarm outputs are available, which indicate when the tank is either full or empty.

Commissioning is done via Bluetooth on a phone. The app is available in 10 different languages.
