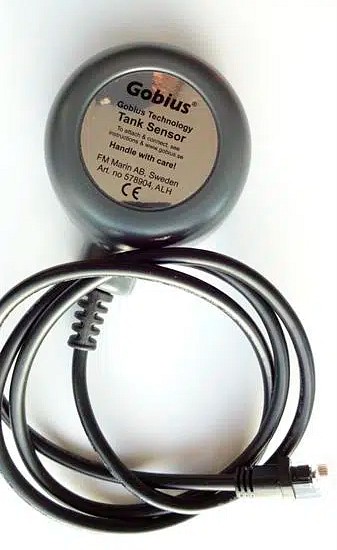

GOBIUS TANK SENSOR

Name: GOBIUS TANK SENSOR - Marimen.com
SKU: 9514052041
Price: 82.07 EUR
Availability: InStock

99,30 €

The Gobius sensor is designed for monitoring the level of liquid tanks (e.g. septic tanks, water or fuel tanks) without the need for penetrations into the tank. The sensor is mounted on the outside of the tank and measures the level based on vibration changes – completely without contact with the liquid.

This model is supplied with a 1 meter cable and is suitable for use with Gobius display units and control systems. The sensor is easy to install, reliable in use and an excellent choice for situations where leak-proofness and maintenance-free operation are important.

Suitable for plastic, fiberglass and metal tanks.

SKU: 9514052041 Kategorijas: Electricity, Maritim, Meters and sensors, Sensors

Apraksts
Papildu informācija

Compatible tank materials:
– Stainless steel (max. 3 mm)
– Steel (max. 3 mm)
– Aluminum (max. 5 mm)
– Polyethylene (max. 12 mm)
– Fiberglass (max. 8 mm)

Technical specifications:
– Colored LED shows the liquid level
– Very low power consumption: < 40 mA
– Operating voltage: 12–24 V
– Direct connection: Simarine PICO, Victron Cerbo GX
– Easy to connect to analog meters: Wema, Faria, VDO
– Supports signals: 10–190 Ohm, 240–33 Ohm, 4–20 mA, 0–5 V
– Compatible with NMEA 2000 network using Gobius converter
– Easy to integrate into EmpirBus NXT systems
– Additional alarm for empty or full tank

Compatible with all Gobius products versions 3.0, 4.0 and 5.0.
Compact and maintenance-free solution for boats, motorhomes and fixed installations.
