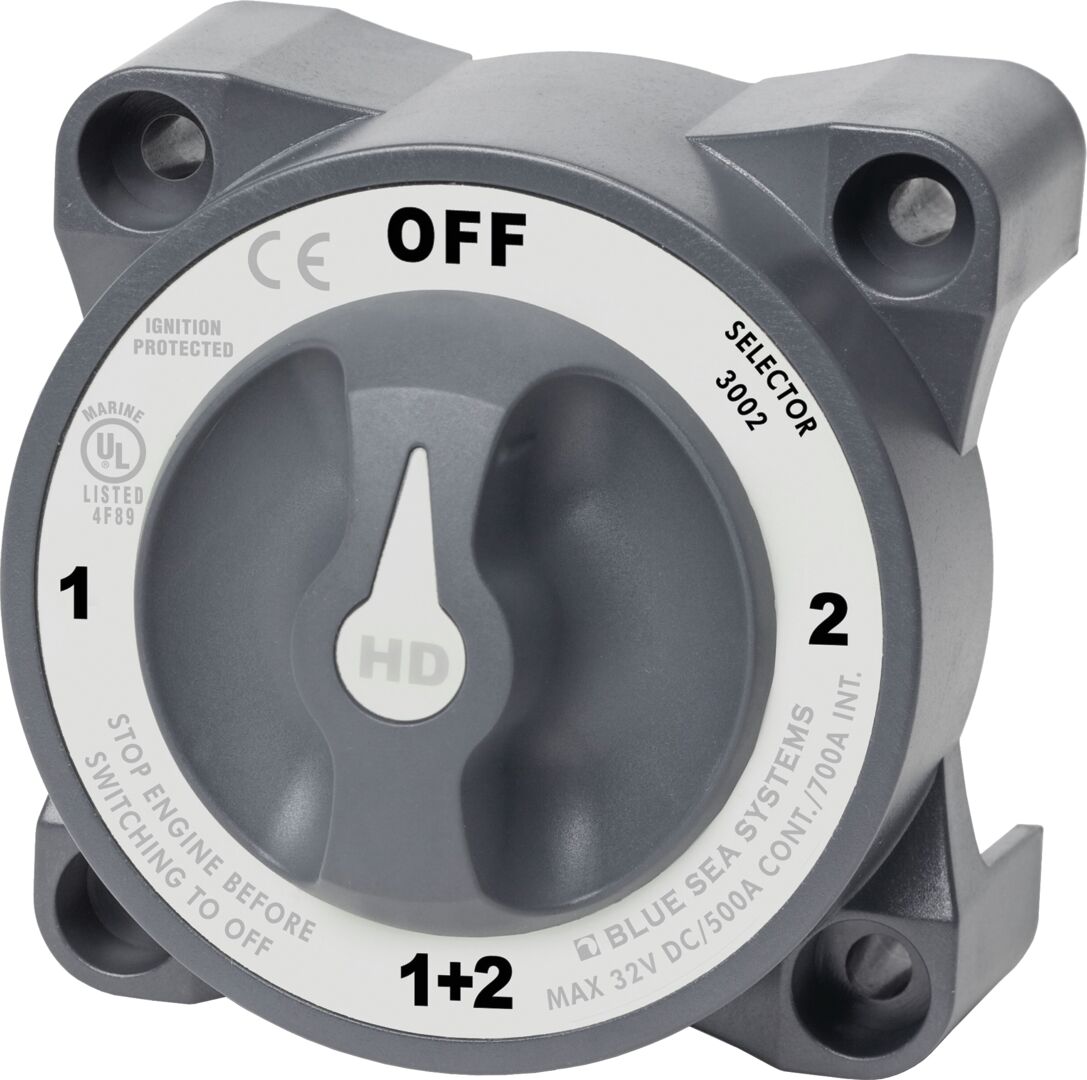

HD SERIES MAIN POWER SWITCH 1-2-OFF-BOTH, GREY
136,91 €
Connects isolated battery banks to all loads or connects battery banks to all loads.
• Connect before disconnect function allows switching between battery banks without power interruption
• Spark-proof – safe to install even on gasoline-powered motorboats
• Allows installation of two 95mm² (4/0 AWG) battery cables
TECHNICAL DATA:
Switch type: 4-position changeover
Color: Gray
Number of switch positions: 4
Battery connection: Yes
Alternator field connection: No
Maximum voltage: 32V DC
Terminal pin tightening torque: 24.86 Nm
Continuous current rating: 500A
Intermittent current rating: 700A (5 min)
Starting current rating 30 s: 1600A
Number of battery inputs: 2
Cable opening for 107mm² cables: 27.94 mm
Number of cables to achieve maximum current: Two cables / connector
Cable size: 107mm²
Mounting hole: Fits M6 screw
Connector pin size: M12
Weight: 0.57 kg
| Svars | 0,567 kg |
|---|---|
| Technical name | 3002-BSS BLUE SEA |
