LEWMAR DOOR HATCH, LOW PROFILE, SIZE 60

Name: LEWMAR DOOR HATCH, LOW PROFILE, SIZE 60 - Marimen.com
SKU: 9512406334
Price: 901.99 EUR
Availability: InStock

1 091,41 €

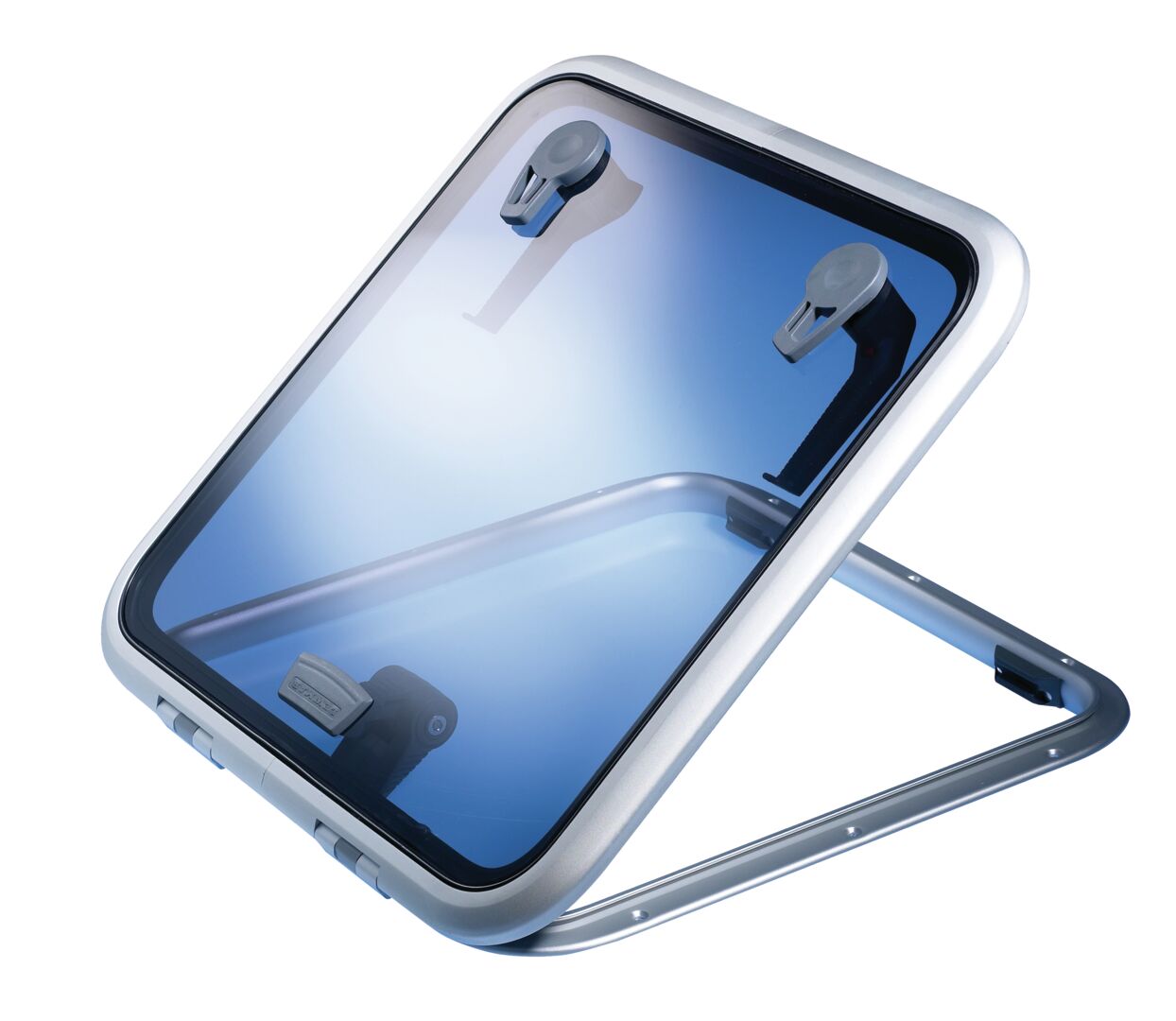

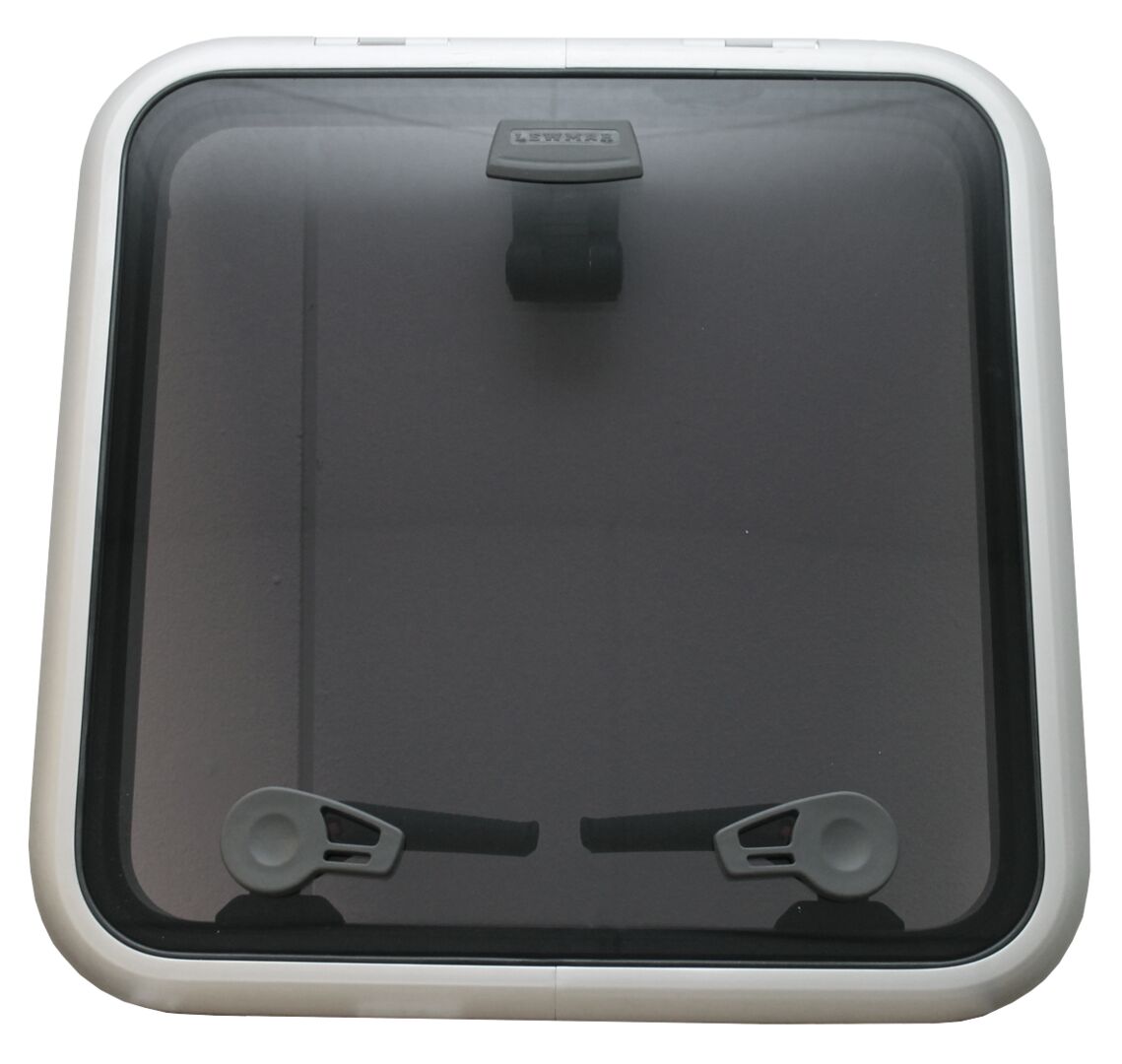

streamlined deck hatch ideal for powerboats, larger sailboats and pleasure craft. This deck hatch stands out for its strong construction, stylish design, ease of use and low maintenance. A unique sealing structure connects the acrylic to the supporting structure, and the acrylic can be easily replaced by removing four screws and sliding the parts apart.

• External handles allow the hatch to be opened from the deck if it is not locked
• Low profile hatches open 180°
• Friction levers hold the hatch open in any position up to 95°
• Anodized aluminum frame for corrosion resistance
• Curved upper frame profile for a modern style

SKU: 9512406334 Kategorijas: Deck hatches, Deck hatches, windows and curtains, Maritim, Refrigeration, cooling, water and air conditioning

Apraksts
Papildu informācija

Technical data:

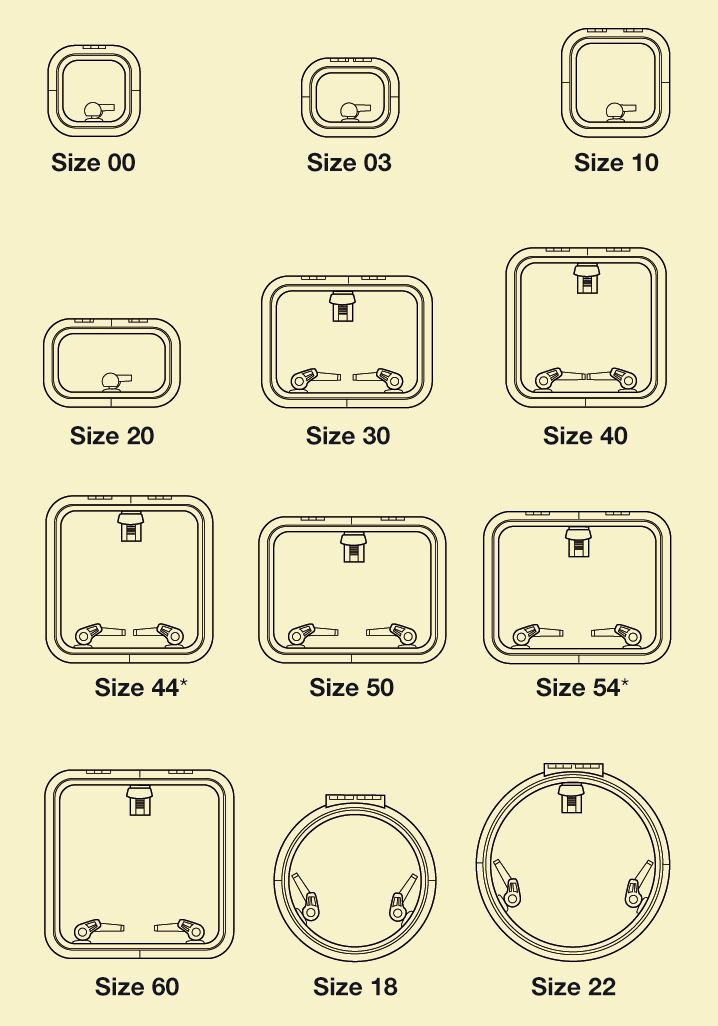

Size: 60
Mounting frame with 15 mm edge
Acrylic color: Smoke gray
Weight: 6.4 kg
Acrylic thickness: 8 mm

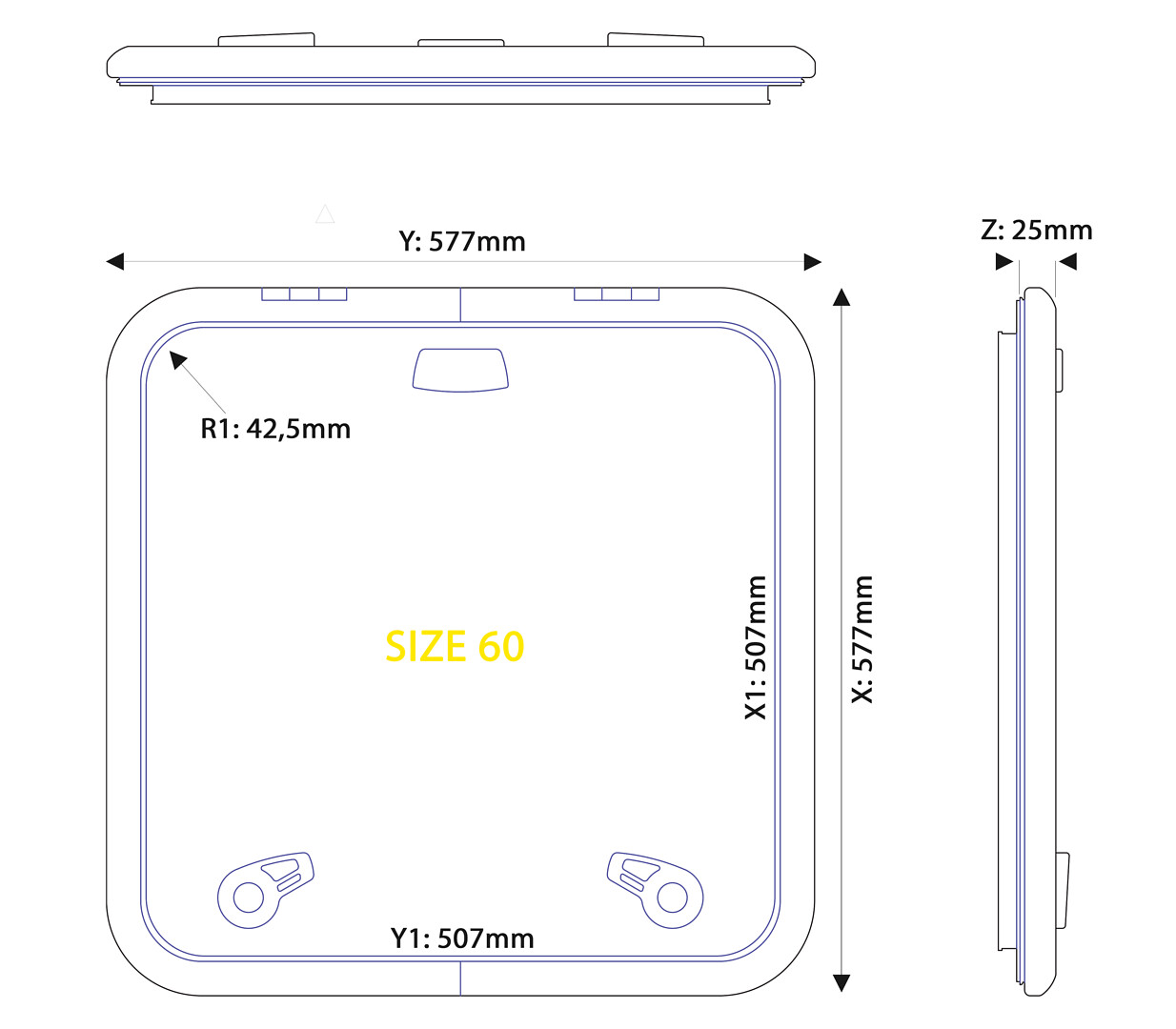

Length X (mm): 577
Width Y (mm): 577
Height Z (mm): 25
Outer corner radius (mm): 72.5
Installation length X1 (mm): 507
Installation width Y1 (mm): 507
Installation corner radius (mm): 42.5

NOTE! The door should be installed on a flat surface, +/- 1 mm tolerance allowed.
