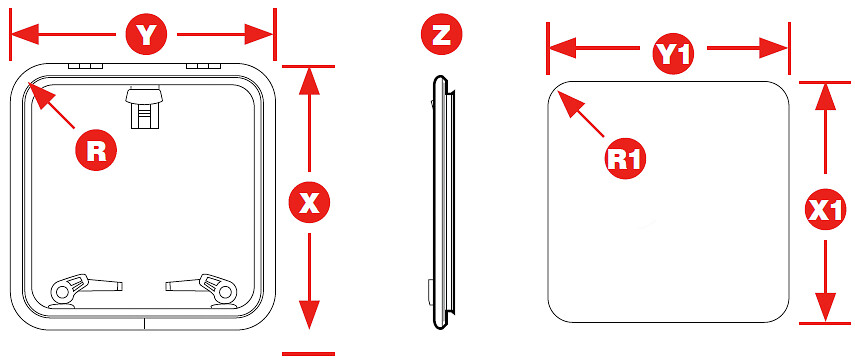

External dimensions: width 577 mm (Y), height 577 mm (X), depth 25 mm (Z), corner radius 72.5 mm (R). Dimensions of the opening to be cut (depending on the sealing material): width 507 mm (Y1), height 507 mm (X1), corner radius 42.5 mm (R1). Acrylic thickness 10 mm. Flush 15 mm.

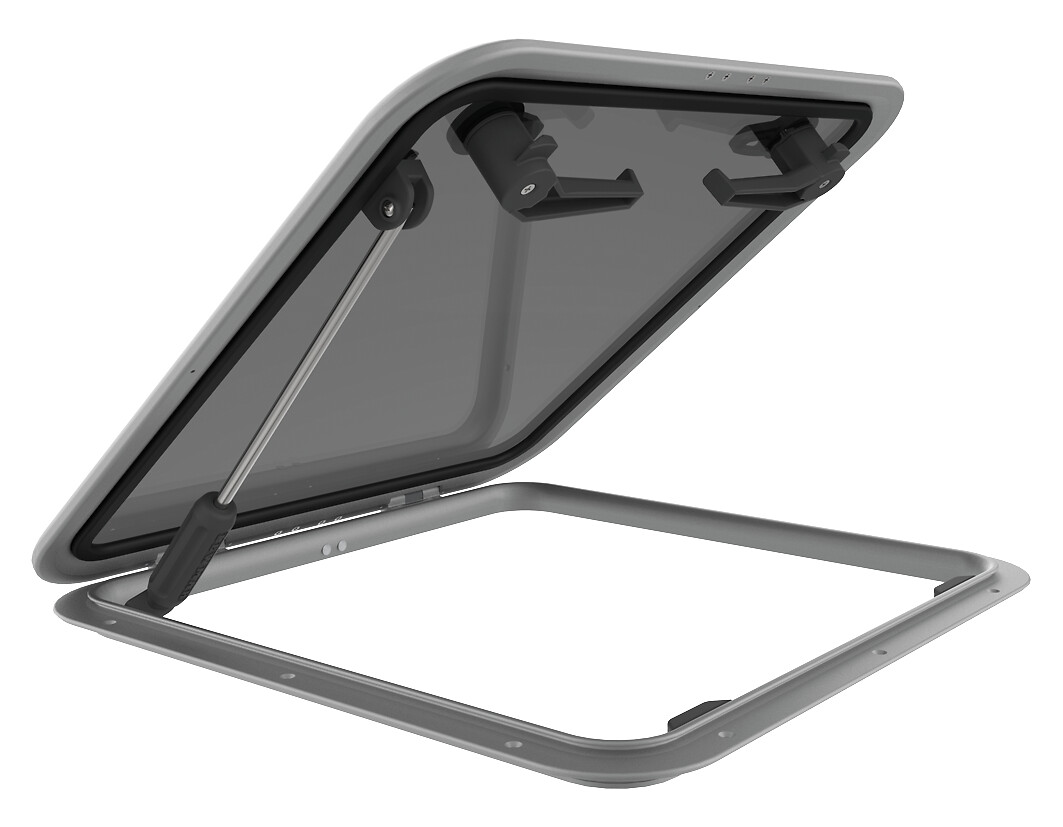

LOW PROFILE DOOR, SIZE 60
1 091,41 €
Ideal hatch for motorboats. Strong construction, stylish design, easy to use and low maintenance. Telescopic hatch holder; stepless locking by turning the handle. Unique sealing structure makes the acrylic part of the load-bearing structure. The hatch must be installed on a flat surface, tolerance +/- 1 mm allowed. Color smoke gray.
