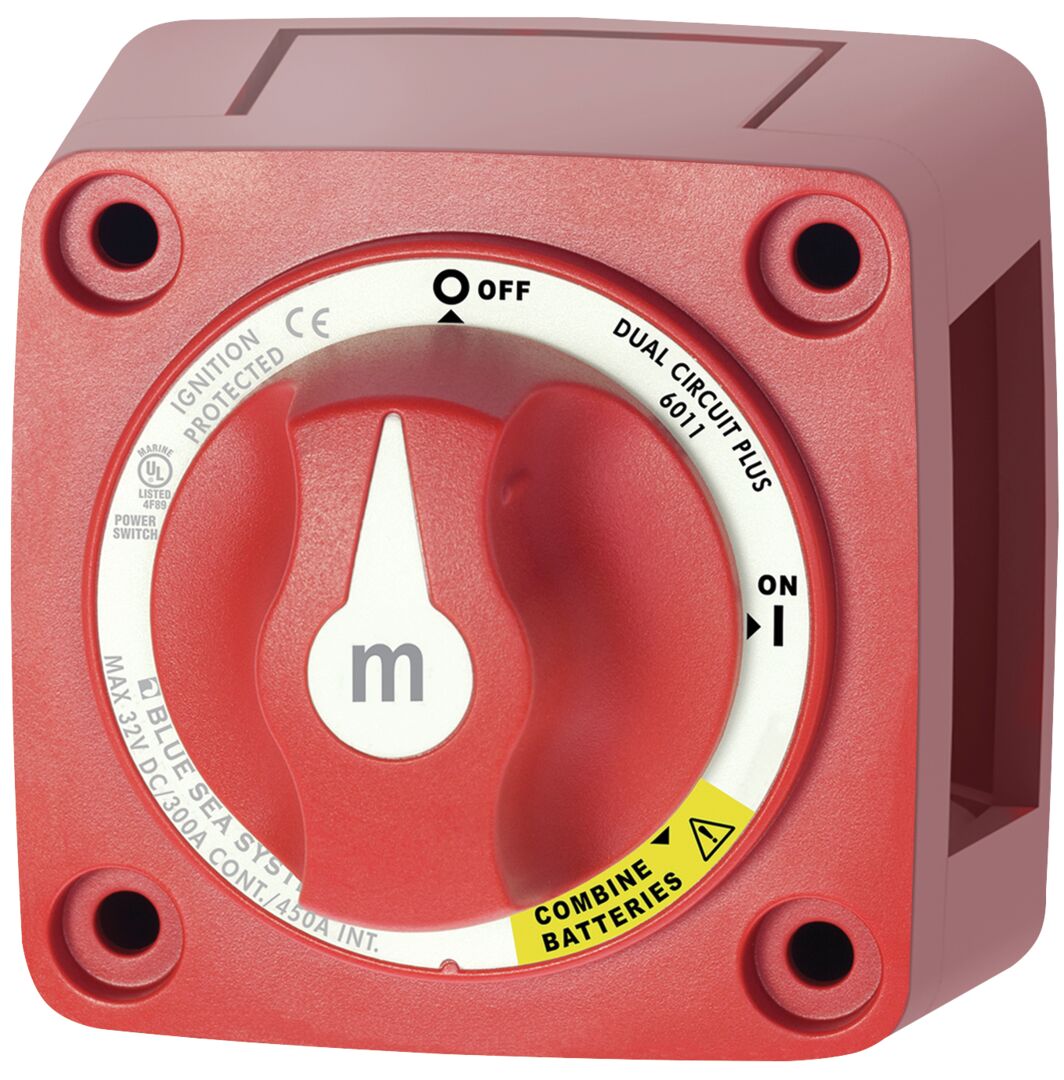

M-SERIES MAIN POWER SWITCH ON-OFF-EMERGY-BOTH
75,20 €
M-Series Mini Dual Circuit Plus™ Main Power Switch ON-OFF-EMERGY-BOTH.
Connects two isolated battery banks simultaneously or connects battery banks to all loads.
• Connect before disconnect feature allows switching between battery banks without power interruption
TECHNICAL DATA:
Civil type: Dual circuit
Colour: Red
Civil positions: 3
Battery connection: Yes
Alternator field disconnection: No
Maximum voltage: 32V DC
Continuous current rating: 300A
Intermittent current rating: 450A (5 min)
Starting current rating 30 s: 675A / circuit
Number of battery inputs: 2
Cable opening for 107mm² cables: 28.45 mm
Cable size: 107mm²
Mounting holes: Fits #10 screw
Connector pin size: M10
Weight: 0.36 kg
| Svars | 0,36 kg |
|---|---|
| Technical name | 6011-BSS BLUE SEA |
