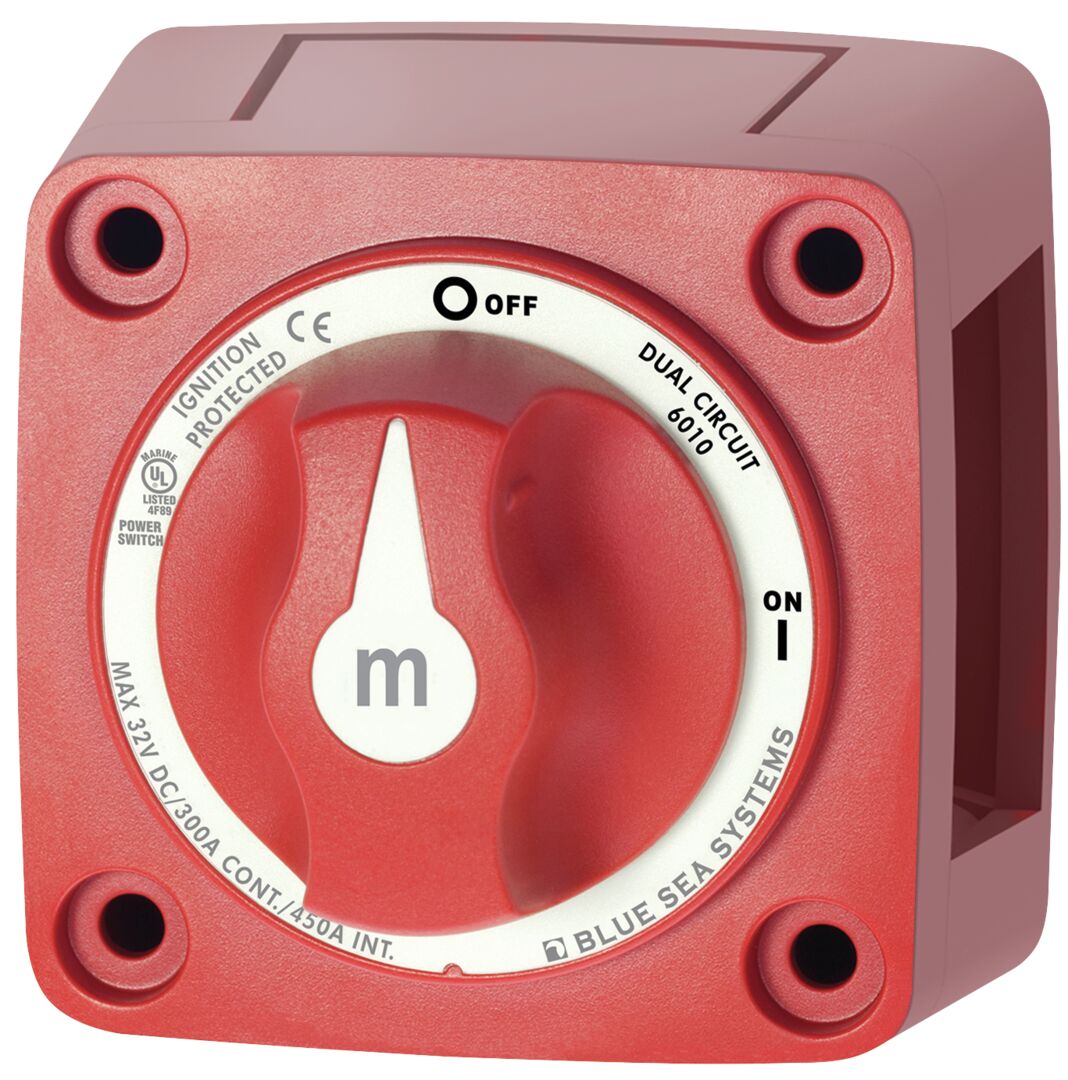

M-SERIES MINI DUAL MAIN POWER SWITCH ON-OFF-DUAL
78,09 €
Single-function ON-OFF main power switch. This can be used to simultaneously disconnect two completely separate battery banks from the load (e.g. 12 and 24 V). It can also be used to simultaneously disconnect both the positive (+) and negative (-) power supply.
TECHNICAL DATA:
Breaker type: Dual circuit
Colour: Red
Breaker positions: 2
Battery connection: No
Alternator field disconnection: No
Maximum voltage: 32V DC
Terminal pin torque: 13.56 Nm
Continuous current rating: 300A
Intermittent current rating: 450A (5 min)
Starting current 30 s: 675A per circuit
Battery input connections: 2
Cable openings for 107mm² cables: 28.45 mm
Cable size: 107mm²
Mounting holes: Fits #10 screws
Terminal pin size: M10
Weight: 0.36 kg
| Svars | 0,36 kg |
|---|---|
| Technical name | BLUE SEA 6010-BSS |
